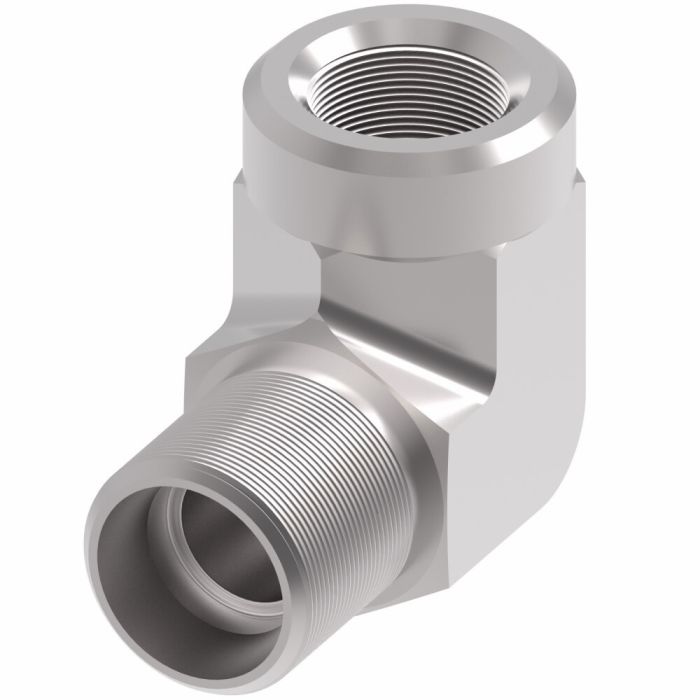

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question
A
1.02
Alternate Part Numbers
Alternate Part Number C1AZ95, Alternate Part Number FMC118-2672-001, Alternate Part Number MI-00354572, Alternate Part Number MINO-00015F88759
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.46
Drop Dimension
1.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.38
End Size 2
0.75
End Type 1
NPTF
End Type 2
SAE ORB
Hex Size 2
0.87
Minimum Working Temperature
-65
Supplier Part Number
206801-6-8S
Thread 1
3/8-18
Thread 2
3/4-16
Thread Sealant
No
Product Weight
0.28 lbs
Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/8-18 female npt line into a 3/4-16 sae o-ring boss port, is this the right elbow for that?
Question by: Gary K on Jul 22, 2025, 2:35 PM
For that connection, you’re on the right track. This adapter is a 90 degree elbow with a 3/8-18 female NPTF end on one side and a 3/4-16 male SAE O-Ring Boss (straight thread O-ring) end on the other.
Answer by: Customer Support on Jul 23, 2025, 6:02 PM
Got a port on my hydraulic manifold that's 3/4-16 SAE O-ring boss and I need to run a line out at a right angle with a 3/8 NPT female fitting on the hose end. This adapter gonna work for that?
Question by: Wes C on Dec 29, 2025, 7:18 PM
That's exactly the configuration this adapter is built for. One end is a 3/4-16 male SAE straight thread O-ring boss, which threads into your manifold port, and the other end is a 3/8-18 female NPT to accept your hose fitting. The 90-degree elbow gives you that right-angle turn you're after, so fluid routing stays clean without bending your line or adding extra fittings.
Answer by: Customer Support on Dec 31, 2025, 6:51 AM

Similar Products

Model Number Thread 1 Thread 2 A B Price Buy Now
206801-8-8S 1/2-14 3/4-16 1.23 1.73
206801-12-12S 3/4-14 1-1/16-12 1.36 2.04
206801-6-8S 3/8-18 3/4-16 1.02 1.46
6805-04-04-NWO 1/4-18 7/16-20 0.87 1.16
6805-06-04-NWO 1/4-18 9/16-18 0.88 1.31
6805-10-08-NWO 1/2-14 7/8-14 1.23 1.8
6805-12-08-NWO 1/2-14 1-1/16-12 1.24 1.94
6805-20-20-NWO 1-1/4-11-1/2 1-5/8-12 1.7 2.38
