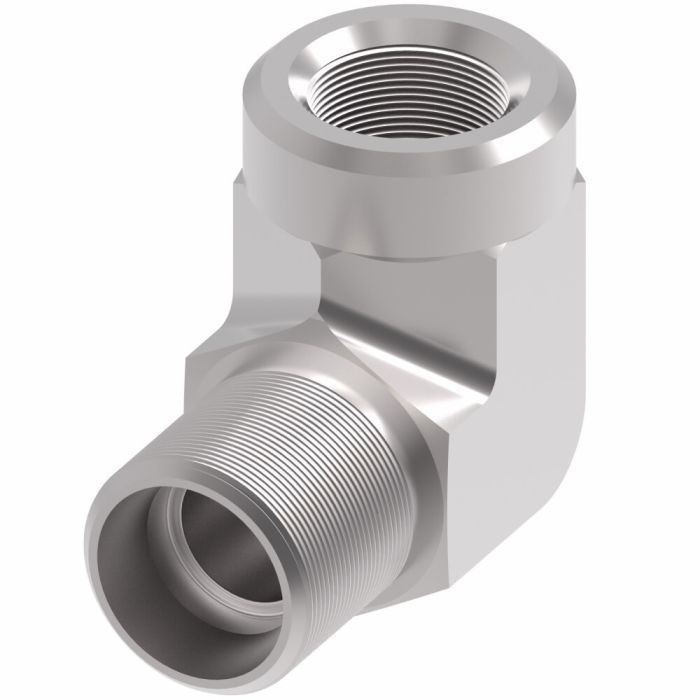

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

A 0.91	Alternate Part Numbers Alternate Part Number C1AZ91, Alternate Part Number MI-00322045, Alternate Part Number MINO-00015F66167	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.45	Drop Dimension 1.48	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.38	End Size 2 0.75	End Type 1 NPSM	End Type 2 SAE ORB	Hex Size 2 0.69	Minimum Working Temperature -65	Seal Part if Included 22617-8	Supplier Part Number 2068-6-8S	Thread 1 3/8-18	Thread 2 3/4-16	Thread Sealant No	Product Weight 0.27 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight spot on a hose run, is this the 90 that goes from 3/8-18 female npt swivel over to 3/4-16 male sae o-ring boss?

Question by: Jimmy C on Apr 12, 2025, 12:57 PM

For a right-angle change in direction, this adapter matches those end styles and sizes: 3/8-18 Female NPT Swivel on one side and 3/4-16 Male SAE O-Ring Boss (straight thread O-ring) on the other, in a 90 degree elbow.

Answer by: Customer Support on Apr 14, 2025, 8:52 AM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2068-4-4S	1/4-18	7/16-20	0.68	1.05
2068-12-10S	3/4-14	7/8-14	1.09	1.7
2068-12-12S	3/4-14	1-1/16-12	1.15	1.94
2068-16-16S	1-11-1/2	1-5/16-12	1.44	2.05
2068-4-6S	1/4-18	9/16-18	0.73	1.25
2068-6-6S	3/8-18	9/16-18	0.83	1.25
2068-6-8S	3/8-18	3/4-16	0.91	1.45
2068-8-10S	1/2-14	7/8-14	0.97	1.7
2068-8-8S	1/2-14	3/4-16	0.91	1.45
6901-12-08-NWO	1/2-14	1-1/16-12		1.92
