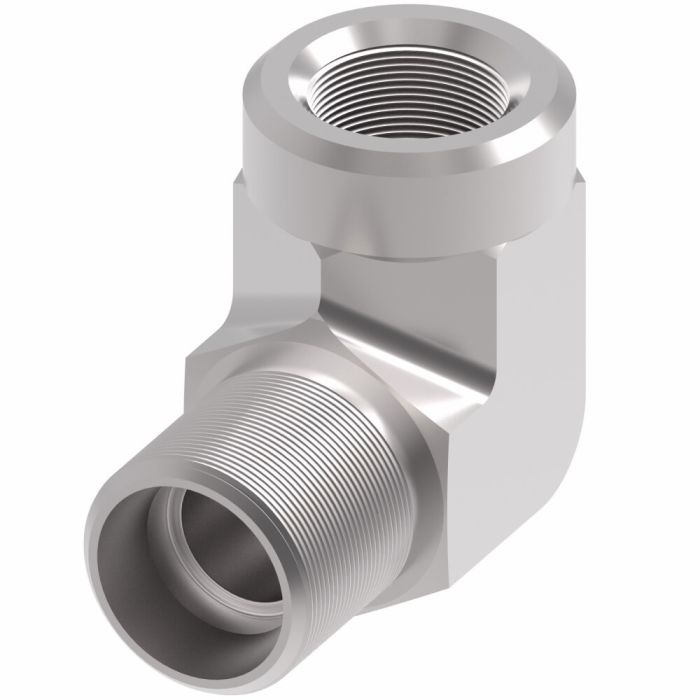

Steel Adapter, 3/8-18 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

A 0.83	Alternate Part Numbers Alternate Part Number C1AZ90, Alternate Part Number MI-00322034, Alternate Part Number MINO-00015F66165	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.25	Drop Dimension 1.35	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.38	End Size 2 0.56	End Type 1 NPSM	End Type 2 SAE ORB	Hex Size 2 0.69	Minimum Working Temperature -65	Supplier Part Number 2068-6-6S	Thread 1 3/8-18	Thread 2 9/16-18	Thread Sealant No	Product Weight 0.21 lbs

Product Questions & Answers

Will this fitting work for a hydraulic setup on my boat? I need a 90-degree elbow.

Question by: Earl W on Sep 19, 2025, 8:23 PM

Its applications include marine environments, so it should be suitable, assuming the thread sizes match your existing setup.

Answer by: Customer Support on Sep 21, 2025, 8:41 AM

Model Number	Thread 1	Thread 2	A	B
2068-4-4S	1/4-18	7/16-20	0.68	1.05
2068-12-10S	3/4-14	7/8-14	1.09	1.7
2068-12-12S	3/4-14	1-1/16-12	1.15	1.94
2068-16-16S	1-11-1/2	1-5/16-12	1.44	2.05
2068-4-6S	1/4-18	9/16-18	0.73	1.25
2068-6-6S	3/8-18	9/16-18	0.83	1.25
2068-6-8S	3/8-18	3/4-16	0.91	1.45
2068-8-10S	1/2-14	7/8-14	0.97	1.7
2068-8-8S	1/2-14	3/4-16	0.91	1.45
6901-12-08-NWO	1/2-14	1-1/16-12		1.92
