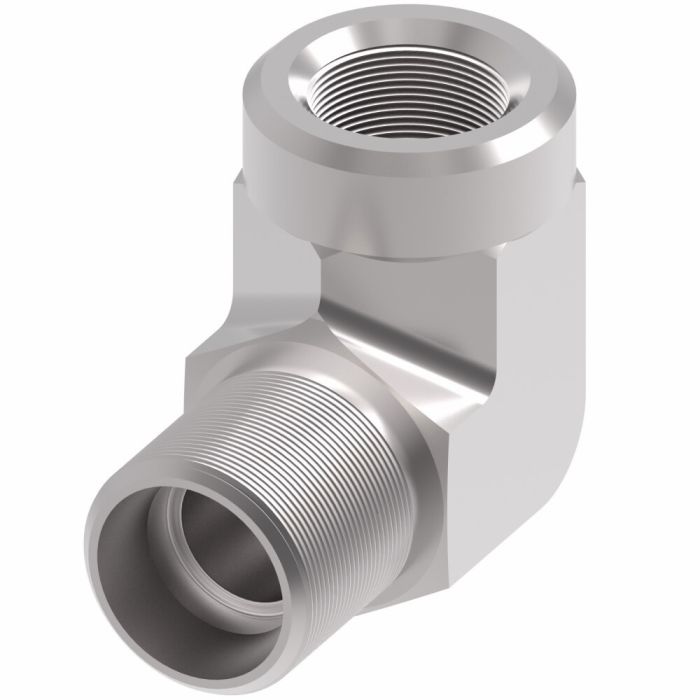

main product photo

Steel Adapter, 1/4-18 Female NPT Swivel To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question
A
0.68
Alternate Part Numbers
Alternate Part Number C1AZ88, Alternate Part Number MI-00322017, Alternate Part Number MINO-00015F66163
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.05
Drop Dimension
1.16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.25
End Size 2
0.44
End Type 1
NPSM
End Type 2
SAE ORB
Hex Size 2
0.69
Minimum Working Temperature
-65
Supplier Part Number
2068-4-4S
Thread 1
1/4-18
Thread 2
7/16-20
Thread Sealant
No
Product Weight
0.11 lbs
Product Questions & Answers 2

Product Questions & Answers

trying to hook a 1/4-18 female pipe swivel up to a 7/16-20 ORB port, is that what this elbow is for?
Question by: Dwayne C on Jun 24, 2025, 7:41 AM
Built for that exact connection, it goes from a 1/4-18 female NPT swivel on one end to a 7/16-20 male SAE O-Ring Boss straight thread on the other, with a 90 degree elbow to turn the line.
Answer by: Customer Support on Jun 26, 2025, 6:05 AM
what industries is this adapter actually used in, like does it cross over into food processing or is it more of an oilfield thing?
Question by: Janet S on May 10, 2025, 8:14 PM
It covers both, actually. The 2068 Series is listed for use across marine and military applications, chemical processing, pulp and paper, food and beverage processing, and offshore drilling. So yeah, it sees duty in a pretty wide range of environments, not just one sector.
Answer by: Customer Support on May 12, 2025, 6:07 AM

Similar Products

Model Number Thread 1 Thread 2 A B Price Buy Now
2068-4-4S 1/4-18 7/16-20 0.68 1.05
2068-12-10S 3/4-14 7/8-14 1.09 1.7
2068-12-12S 3/4-14 1-1/16-12 1.15 1.94
2068-16-16S 1-11-1/2 1-5/16-12 1.44 2.05
2068-4-6S 1/4-18 9/16-18 0.73 1.25
2068-6-6S 3/8-18 9/16-18 0.83 1.25
2068-6-8S 3/8-18 3/4-16 0.91 1.45
2068-8-10S 1/2-14 7/8-14 0.97 1.7
2068-8-8S 1/2-14 3/4-16 0.91 1.45
6901-12-08-NWO 1/2-14 1-1/16-12 1.92
