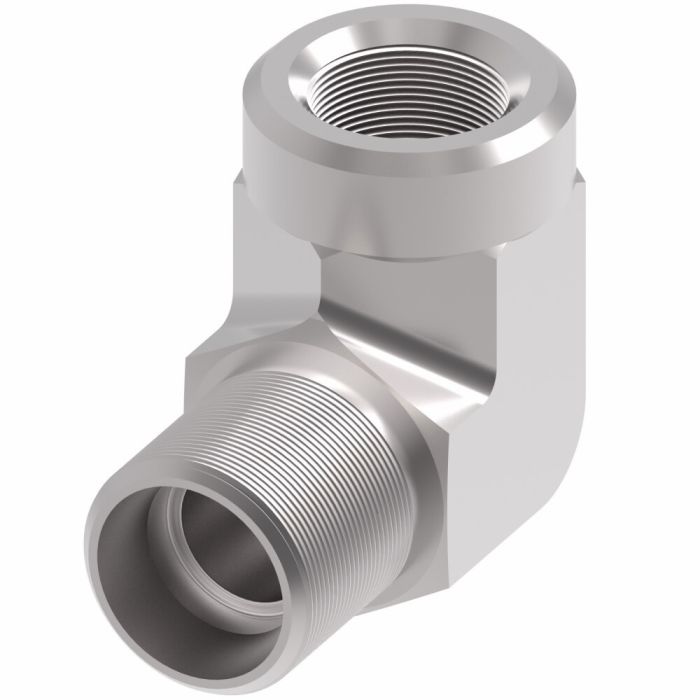

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

A 1.44	Alternate Part Numbers Alternate Part Number C1AZ87, Alternate Part Number MI-00322101, Alternate Part Number MINO-00015F66175	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 2.05	Drop Dimension 2.12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 1	End Type 1 NPSM	End Type 2 SAE ORB	Hex Size 2 1.50	Minimum Working Temperature -65	Seal Part if Included 22617-16	Supplier Part Number 2068-16-16S	Thread 1 1-11-1/2	Thread 2 1-5/16-12	Thread Sealant No	Product Weight 0.90 lbs

Product Questions & Answers 1

Product Questions & Answers

what industries is this elbow adapter actually rated for? got a pulp mill application and trying to figure out if this fits the bill

Question by: Dustin E on Aug 20, 2025, 4:45 PM

Pulp and paper is one of the listed application areas for this adapter, along with marine, military, chemical processing, food and beverage, and offshore drilling. So a pulp mill environment fits squarely within what this part is built for. The 2068 Series from Eaton Aeroquip covers a solid range of demanding industrial settings, and that one is explicitly included.

Answer by: Customer Support on Aug 22, 2025, 6:09 AM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2068-4-4S	1/4-18	7/16-20	0.68	1.05
2068-12-10S	3/4-14	7/8-14	1.09	1.7
2068-12-12S	3/4-14	1-1/16-12	1.15	1.94
2068-16-16S	1-11-1/2	1-5/16-12	1.44	2.05
2068-4-6S	1/4-18	9/16-18	0.73	1.25
2068-6-6S	3/8-18	9/16-18	0.83	1.25
2068-6-8S	3/8-18	3/4-16	0.91	1.45
2068-8-10S	1/2-14	7/8-14	0.97	1.7
2068-8-8S	1/2-14	3/4-16	0.91	1.45
6901-12-08-NWO	1/2-14	1-1/16-12		1.92
