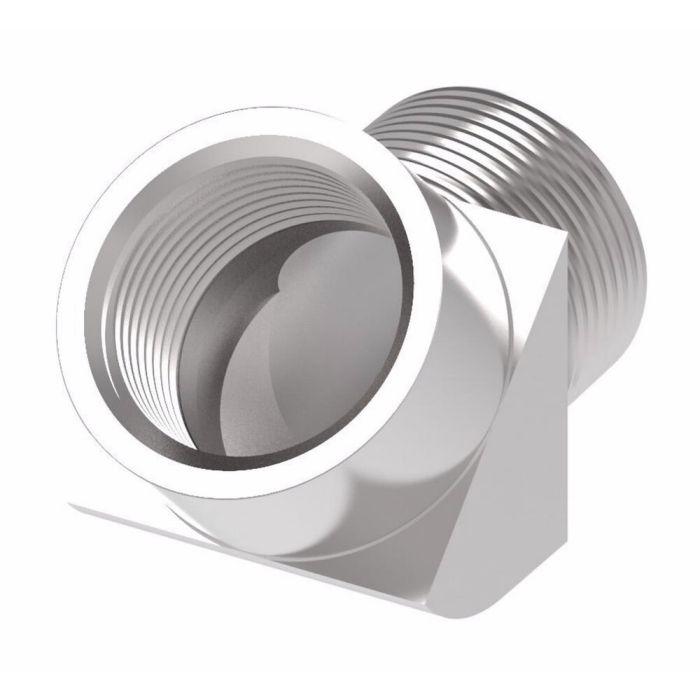

main product photo

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question
A
1.26
Alternate Part Numbers
Alternate Part Number C1AZ81, Alternate Part Number MI-00322013, Alternate Part Number MINO-00015F66162
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.89
Drop Dimension
1.89
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
1
End Type 1
NPSM
End Type 2
SAE ORB
Hex Size 2
1.50
Minimum Working Temperature
-65
Supplier Part Number
2067-16-16S
Thread 1
1-11-1/2
Thread 2
1-5/16-12
Thread Sealant
No
Product Weight
0.80 lbs
Product Questions & Answers 2

Product Questions & Answers

Just want to make sure this elbow will work for a hydraulic setup in my boat. Says marine application, but want to double check.
Question by: Dwight B on Jun 15, 2025, 12:15 PM
You're right to double-check for marine use. This Eaton Aeroquip 2067 series elbow adapter is suitable for marine applications, along with military, chemical processing, pulp and paper, and food and beverage processing.
Answer by: Customer Support on Jun 16, 2025, 1:05 PM
Got a 1" NPT female swivel port on a pump housing and need to tie into a 1-5/16-12 SAE O-ring boss fitting at a 45 degree angle. this the right adapter for that?
Question by: Jimmy R on Jan 8, 2026, 11:18 AM
That's exactly the application this piece is built for. The female end is 1-11/2 NPT swivel, and the male end is 1-5/16-12 SAE O-ring boss straight thread, with a 45 degree elbow geometry between them. The swivel feature on the NPT side also gives you some rotational flexibility during installation, which helps a lot when you're working in a tight spot and need to line things up without stressing the fittings.
Answer by: Customer Support on Jan 9, 2026, 9:10 PM

Similar Products

Model Number Thread 1 Thread 2 A B Price Buy Now
2067-16-16S 1-11-1/2 1-5/16-12 1.26 1.89
