So this tee fitting has a female NPT end and a male JIC end? Just want to make sure I'm seeing that right.
Question by: Vince S on May 28, 2025, 12:45 PM

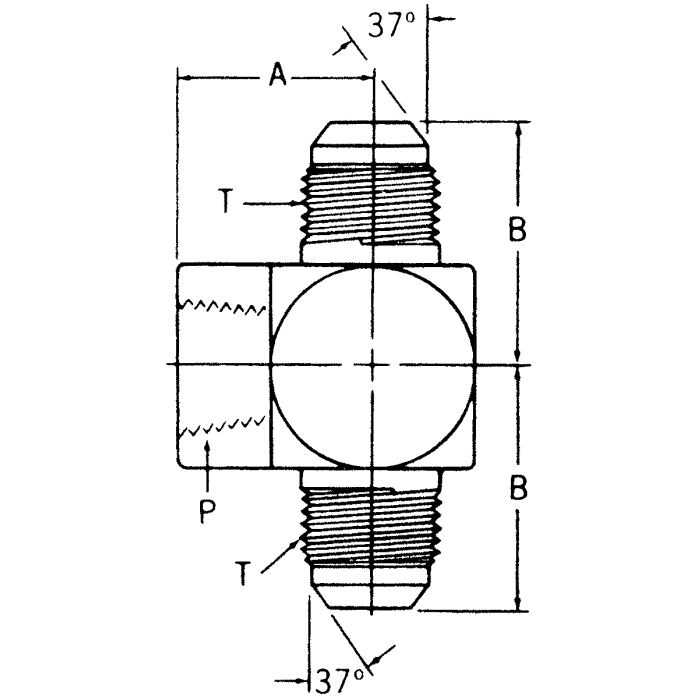

That's correct. This adapter features a 1-1/4-11-1/2 female NPT branch and a 1-5/8-12 male JIC 37-degree flare run.
Answer by: Customer Support on May 30, 2025, 7:56 AM
trying to replace a tee i pulled off my machine, how do i know this one matches up
Question by: Rex T on Apr 24, 2025, 2:41 PM
Match it by the thread callouts and end types. The branch is 1-1/4-11-1/2 female NPT, and the run is 1-5/8-12 male JIC 37 degree flare. It is a steel pipe to 37 degree flare tee, with a 1.25 inch tube O.D. size on the JIC side.
Answer by: Customer Support on Apr 26, 2025, 6:09 AM
