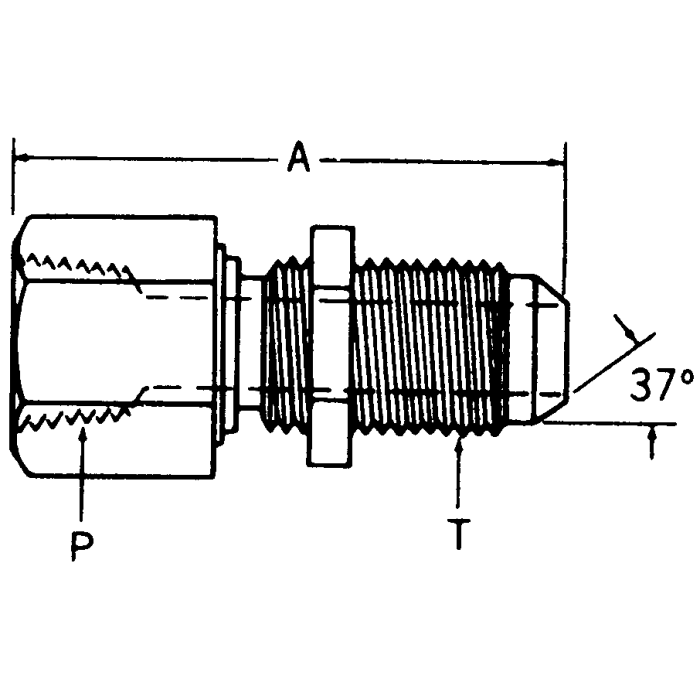

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

A 2.19	Alternate Part Numbers Alternate Part Number C1DW80, Alternate Part Number MI-02481879, Alternate Part Number MINO-00028J40541	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2705-06-06	Thread 1 3/8-18	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Product Weight 0.17 lbs

Product Questions & Answers 3

Product Questions & Answers

i got a hose end that’s 9/16-18 JIC, will this adapter mate up to that and still give me NPT on the other side?

Question by: Bobby G on Jun 26, 2025, 6:29 PM

On the JIC side, you get a 9/16-18 male JIC 37 degree flare. The other end is a 3/8-18 female NPT, so it’s meant to bridge a 9/16-18 JIC connection over to a 3/8-18 NPT threaded connection.

Answer by: Customer Support on Jun 28, 2025, 11:24 AM

got a 3/8 female NPT port on a panel and need to run a JIC line off it, this the right adapter to bridge that gap?

Question by: Duane R on Nov 25, 2025, 11:23 AM

That's exactly what this fitting is built for. One end threads into a 3/8-18 female NPT port, and the other presents a 9/16-18 male JIC 37-degree flare for your JIC line connection. The bulkhead design also means it's meant to mount through a panel or wall, so if you're routing a line through sheet metal or a housing, it'll seat and lock in place securely rather than just floating in line.

Answer by: Customer Support on Nov 26, 2025, 5:11 PM

Will this here fitting work to connect a 3/8" female NPT to a 9/16" male JIC?

Question by: Warren M on Mar 2, 2026, 4:21 PM

This steel adapter is specifically designed to connect a 3/8-18 Female NPT to a 9/16-18 Male JIC 37 degree flare.

Answer by: Customer Support on Mar 4, 2026, 6:24 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2239-12-12S	0.75	3/4-14	1-1/16-12	3.05
2239-2-4S	0.25	1/8-27	7/16-20	2.08
2239-6-8S	0.5	3/8-18	3/4-16	2.48
2705-04-04	0.25	1/4-18	7/16-20	2.04
2239-8-10S	0.63	1/2-14	7/8-14	2.84
2705-06-06	0.38	3/8-18	9/16-18	2.19
