got a 1/4 female NPT port on a hydraulic block and need to tie into a 9/16-18 JIC female line, this straight adapter the right call for that?
Question by: Troy P on Jun 3, 2025, 8:46 PM

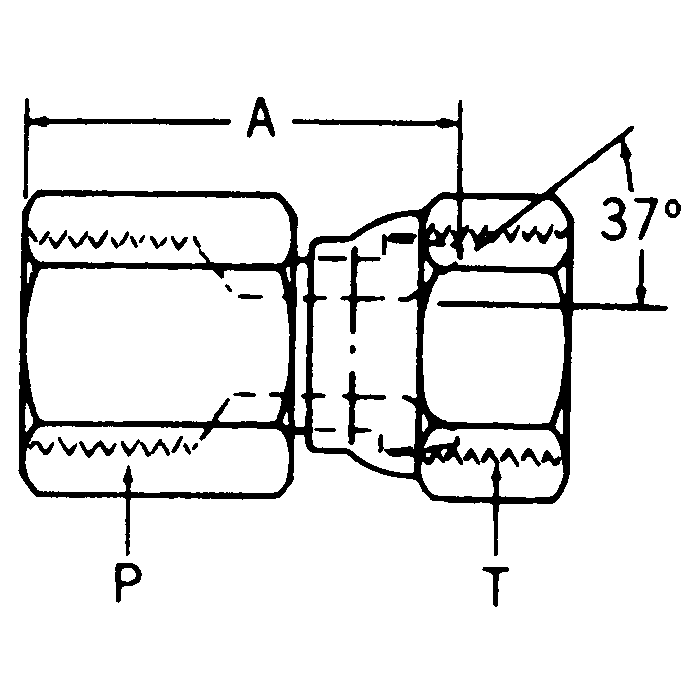

That's exactly the application this fitting is built for. One end threads into a 1/4-18 female NPT port, and the other connects to a 9/16-18 female JIC 37 degree flare swivel line. The straight configuration keeps everything in-line, so if your ports are aligned and you don't need an elbow or angle fitting, this one fits the bill. Steel construction holds up well in standard hydraulic hydraulic connections environments.
Answer by: Customer Support on Jun 5, 2025, 6:42 AM
trying to hook a 1/4-18 female NPT port over to a 9/16-18 female JIC swivel, is that what this adapter does?
Question by: Daryl C on Oct 24, 2025, 7:10 PM
Converts a 1/4-18 female NPT connection on one side to a 9/16-18 female JIC 37 degree flare swivel on the other, in a straight adapter body.
Answer by: Customer Support on Oct 26, 2025, 12:20 PM
fitting goes from female NPT on one end to female JIC flare on the other end, that right? trying to make sure i got the thread sizes straight before i order
Question by: Norm R on Jul 4, 2025, 10:46 AM
Correct on both counts. One end is 1/4-18 Female NPT and the other is 9/16-18 Female JIC 37-degree flare swivel. Both ends are female, so you'll need male threads on whatever you're connecting to on each side. The straight configuration means there's no angle change between the two ports.
Answer by: Customer Support on Jul 5, 2025, 4:17 PM
need to hook up a 1/4-18 female NPT port to a JIC line, is this the right adapter?
Question by: Norm J on Jun 8, 2025, 10:29 AM
For that kind of hookup, it matches a 1/4-18 female NPT on one side and a 9/16-18 female JIC 37 degree flare swivel on the other, in a straight body.
Answer by: Customer Support on Jun 10, 2025, 6:53 AM
Will this adapter work to connect a 1/4 inch NPT female fitting to a 9/16 inch JIC female fitting?
Question by: Melvin A on Sep 22, 2025, 6:48 AM
Yes, this steel adapter is designed to connect a 1/4-18 Female NPT to a 9/16-18 Female JIC 37-degree flare swivel fitting.
Answer by: Customer Support on Sep 23, 2025, 5:32 PM
