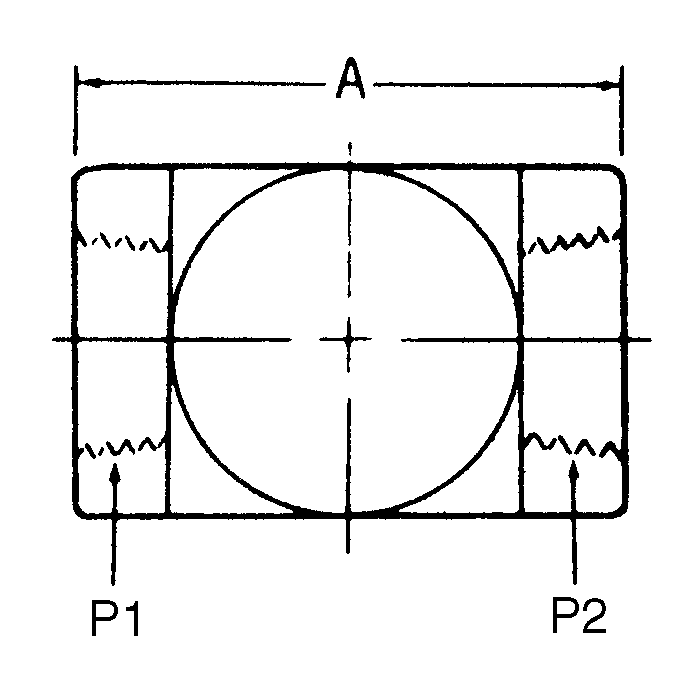

Steel Adapter, 3/8-18 Female NPT To 1/4-18 Female NPT, Straight

A 1.13	Alternate Part Numbers Alternate Part Number 2096-04-06S, Alternate Part Number A2096-6-4S, Alternate Part Number C1BR65, Alternate Part Number MI-00316438, Alternate Part Number MINO-00028F64238	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5000-06-04	Thread 1 3/8-18	Thread 2 1/4-18	Thread Sealant No	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line with a 3/8-18 female npt port and the valve side is 1/4-18 female npt. is this the straight adapter that bridges those two?

Question by: Neal L on May 3, 2025, 5:22 PM

Made for pipe-to-pipe connections, it couples a 3/8-18 female NPT thread on one end to a 1/4-18 female NPT thread on the other in a straight, rigid union style.

Answer by: Customer Support on May 4, 2025, 8:36 PM

Got a line running 3/8 female NPT and need to step it down to 1/4 female NPT without a bunch of fittings in between. This the right piece for that?

Question by: Kurt D on Oct 27, 2025, 10:16 AM

That's what this adapter is built for. One end threads into a 3/8-18 female NPT connection, the other picks up a 1/4-18 female NPT, and it does it all in a straight, compact form. No extra couplings needed in between.

Answer by: Customer Support on Oct 28, 2025, 3:22 PM

What size threads does this adapter have? Just wanna make sure it'll fit my setup.

Question by: Hank R on Nov 13, 2025, 4:04 PM

It comes with 3/8-18 female NPT on one end and 1/4-18 female NPT on the other, which is handy for connecting different sized pipes without needing sealant.

Answer by: Customer Support on Nov 15, 2025, 8:22 AM

Similar Products

Model Number	Thread 1	Thread 2	A
2096-12S	3/4-14	3/4-14	1.53
2096-16S	1-11-1/2	1-11-1/2	1.89
2096-20S	1-1/4-11-1/2	1-1/4-11-1/2	1.93
2096-24S	1-1/2-11-1/2	1-1/2-11-1/2	1.93
2096-2S	1/8-27	1/8-27	0.75
2096-4S	1/4-18	1/4-18	1.13
2096-6S	3/8-18	3/8-18	1.13
2096-8S	1/2-14	1/2-14	1.5
5000-06-02	3/8-18	1/8-27	1.13
5000-06-04	3/8-18	1/4-18	1.13
5000-08-04	1/2-14	1/4-18	1.5
5000-08-06	1/2-14	3/8-18	1.5
5000-12-08	3/4-14	1/2-14	1.53
