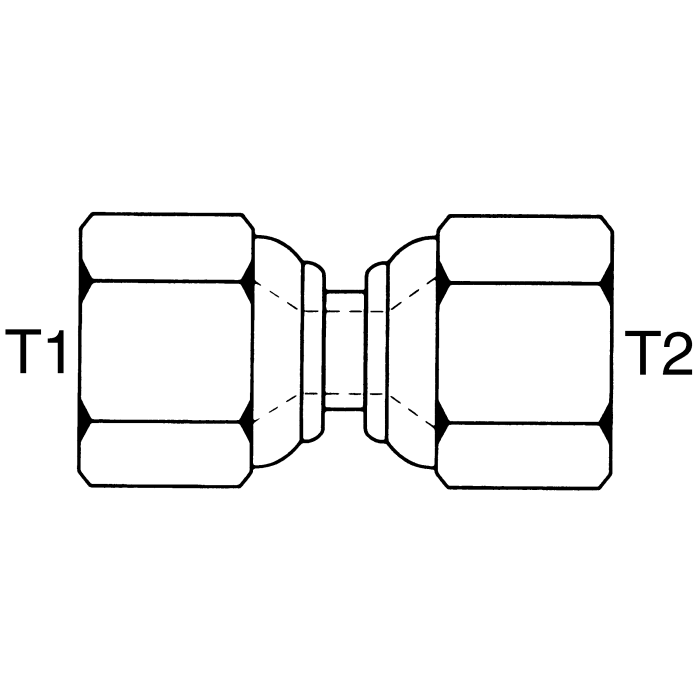

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 7/8-14 Female JIC 37 deg Flare Swivel, Straight

Alternate Part Numbers Alternate Part Number C1FE87, Alternate Part Number MI-02205732, Alternate Part Number MINO-03671X84671	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-10-10	Thread 1 7/8-14	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Product Weight 0.22 lbs

Product Questions & Answers 1

Product Questions & Answers

both ends on this thing are female JIC swivel, right? just want to make sure before I order cause I need to connect two female-threaded lines together

Question by: Pete H on Jun 22, 2025, 8:05 AM

Correct on both counts. Each end carries a 7/8-14 female JIC thread with a 37-degree flare swivel, so it functions as a union between two male JIC fittings or lines terminating in male JIC ends. The swivel feature on each side lets you make up the connection without twisting the hoses or tubing, which saves a lot of grief during installation.

Answer by: Customer Support on Jun 23, 2025, 5:33 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2
9026-06-06	0.38	9/16-18	9/16-18
9026-04-04	0.25	7/16-20	7/16-20
9026-08-08	0.5	3/4-16	3/4-16
9026-10-10	0.63	7/8-14	7/8-14
9026-12-12	0.75	1-1/16-12	1-1/16-12
9026-16-16	1	1-5/16-12	1-5/16-12
