Steel 4-Bolt Flange Adapter, Inch Code 62 Flange, O-Ring Half To Inch Female NPT, Straight
Products

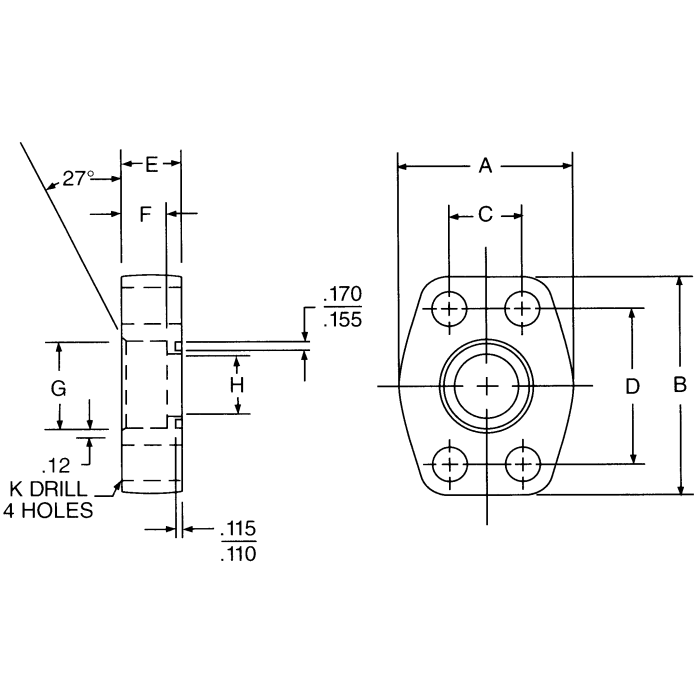

| Model Number | Includes | Pipe Size | Pad Size | A | B | C | D | E | F | G | H | K | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W59-20-20U | Mounting bolts, lock washers and Buna-N O-Ring | 1.25 | 1.25 | 3.06 | 3.75 | 1.25 | 2.625 | 1.5 | 0.69 | 1.75 | 1.252 in | 0.531 |
|
|
| W59-24-24U | Mounting bolts, lock washers and Buna-N O-Ring | 1.5 | 1.5 | 3.75 | 4.44 | 1.437 | 3.125 | 1.75 | 0.75 | 2.115 | 1.502 in | 0.656 |
|
|
| W59-32-32U | Mounting bolts, lock washers and Buna-N O-Ring | 2 | 2 | 4.5 | 5.25 | 1.75 | 3.812 | 1.75 | 0.875 | 2.49 | 2.002 in | 0.781 |
|
|
| W59-40-40U | Mounting bolts, lock washers and Buna-N O-Ring | 2.5 | 2.5 | 5.87 | 6.87 | 2.312 | 4.875 | 2.06 | 1 | 2.995 | 2.502 in | 0.906 |
|
