Steel 4-Bolt Flange Adapter, 1.25 Inch Code 62 Flange, Flat Face Half To 1.25 Inch Female NPT, Straight

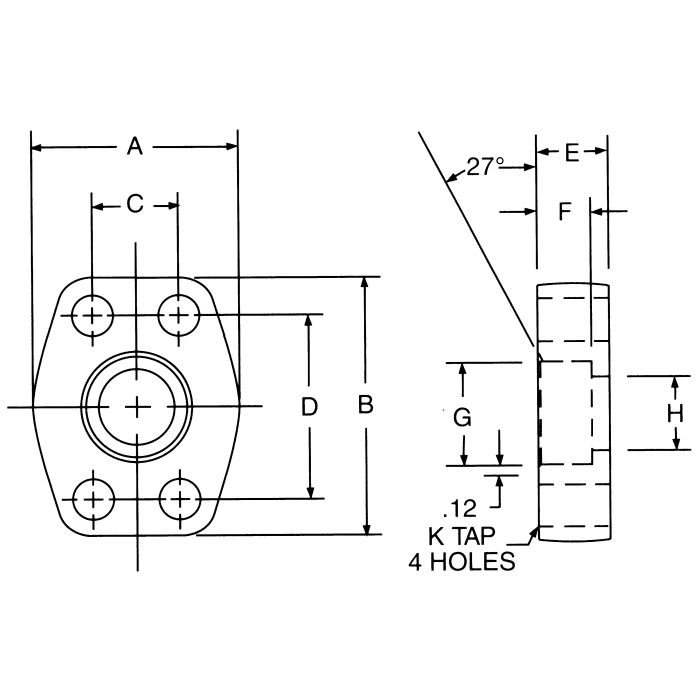

A 3.06	B 3.75	C 1.25	D 2.63	E 1.50	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.69	G 1.67	H 1.25 in	Pad Size 1.25	Pipe Size 1.25	Supplier Part Number W60-20-20	Thread 1 1/2-13	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DT16	Product Weight 3.13 lbs

Product Questions & Answers 2

Product Questions & Answers

got a #20 code 62 flat face flange on one side and need to go into 1-1/4 female pipe thread, is that what this adapter does?

Question by: Connie M on Feb 9, 2026, 7:05 AM

Built for that exact transition, it goes from a 1.25 inch Code 62 4-bolt flat face flange half to a 1.25 inch female NPT connection in a straight layout.

Answer by: Customer Support on Feb 10, 2026, 2:27 PM

Can this flange adapter handle high-pressure hydraulic systems in industrial use?

Question by: Bonnie C on Dec 6, 2025, 7:01 PM

Crafted from durable steel, this adapter is definitely suitable for high-pressure systems commonly found in industrial hydraulic applications.

Answer by: Customer Support on Dec 8, 2025, 6:05 AM

Similar Products

Model Number	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	Thread 1
W60-16-16	1	1	2.75	3.19	1.093	2.25	1.5	0.63	1.328	1 in	7/16-14
W60-20-20	1.25	1.25	3.06	3.75	1.25	2.625	1.5	0.69	1.672	1.25 in	1/2-13
W60-24-24	1.5	1.5	3.75	4.44	1.437	3.125	1.75	0.75	1.922	1.5 in	5/8-11
