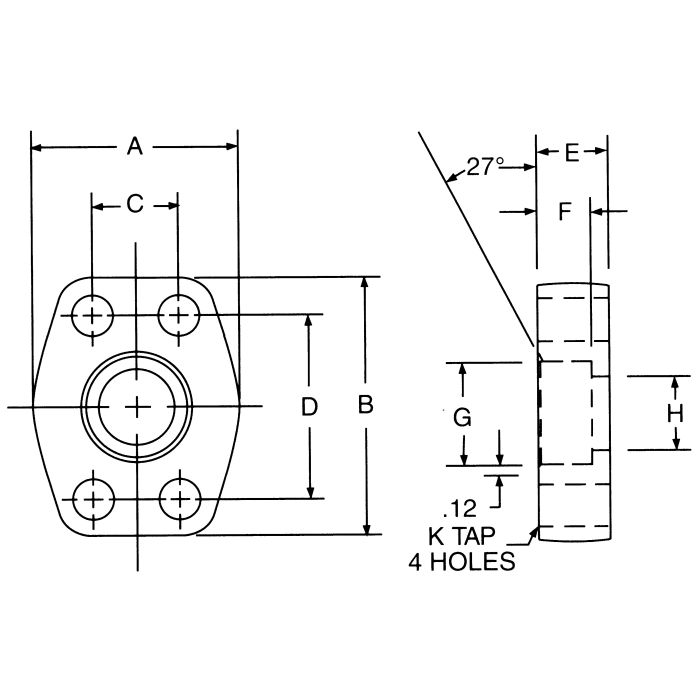

Steel 4-Bolt Flange Adapter, 1.00 Inch Code 62 Flange, Flat Face Half To 1.00 Inch Female NPT, Straight

A 2.75	B 3.19	C 1.09	D 2.25	E 1.50	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.63	G 1.33	H 1 in	Pad Size 1	Pipe Size 1	Supplier Part Number W60-16-16	Thread 1 7/16-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DT15	Product Weight 2.45 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of connection does this adapter actually make? Got a Code 62 flange on one end and not sure what the other side hooks up to.

Question by: Donna S on Jan 11, 2026, 9:01 AM

One end mates with a 1.00 inch Code 62 flange using a 4-bolt flat face half configuration. The other end is a 1.00 inch female NPT port, so you're threading a male NPT fitting or pipe into it. The flat face design keeps the seal tight and helps prevent leaks under pressure, which matters in high-demand hydraulic lines.

Answer by: Customer Support on Jan 12, 2026, 8:08 PM

trying to hook a 1 inch npt hose up to a code 62 flange port, is this the right adapter?

Question by: Clint M on Dec 9, 2025, 8:45 AM

For that kind of hookup, it matches a 1.00 inch Code 62 4-bolt flange on one side and a 1.00 inch female NPT on the other, in a straight configuration.

Answer by: Customer Support on Dec 10, 2025, 11:26 AM

Will this flange adapter hold up in a hydraulic system that sees pretty consistent high pressure?

Question by: Gene T on Nov 25, 2025, 8:53 AM

Crafted from high-quality steel, this adapter is designed for robust hydraulic applications, ensuring durability and strength under pressure. It’s built to maintain system integrity and reduce the risk of leaks in demanding environments.

Answer by: Customer Support on Nov 27, 2025, 7:18 AM

Similar Products

Model Number	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	Thread 1
W60-16-16	1	1	2.75	3.19	1.093	2.25	1.5	0.63	1.328	1 in	7/16-14
W60-20-20	1.25	1.25	3.06	3.75	1.25	2.625	1.5	0.69	1.672	1.25 in	1/2-13
W60-24-24	1.5	1.5	3.75	4.44	1.437	3.125	1.75	0.75	1.922	1.5 in	5/8-11
