Steel SAE 4-Bolt Flange Adapter, 3.50 Inch Code 61 Flange, O-Ring Half To 3.50 Inch Pipe, Flat Socket Weld

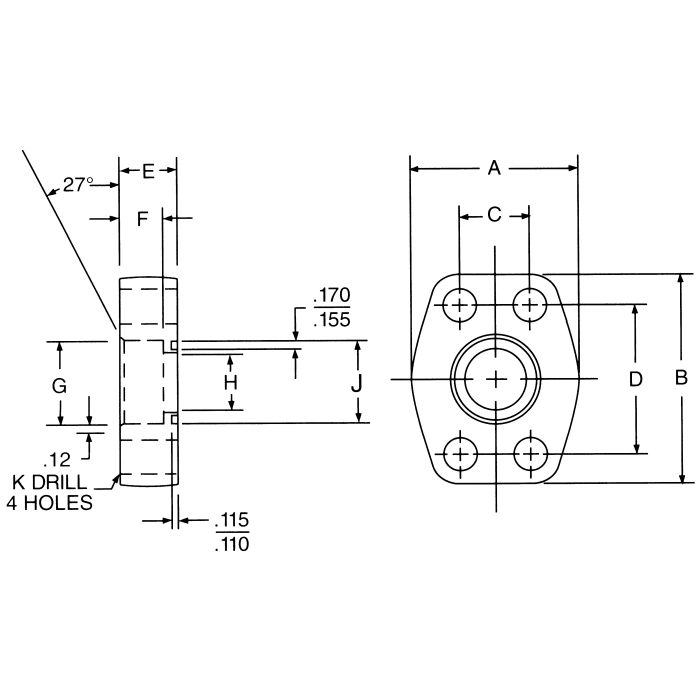

A 5.50	B 6	C 2.75	D 4.75	E 1.44	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 1.19	G 4.10	H 3.502 in	Includes Mounting bolts, lock washers and Buna-N O-Ring	K 0.66	Pad Size 3.50	Pipe Size 3.50	Supplier Part Number W72-56-56U	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1JR15, Alternate Part Number W72-56-56-U, Alternate Part Number W725656U	Product Weight 6.94 lbs

Product Questions & Answers 2

Product Questions & Answers

Does this adapter come with everything you need to bolt it up, or do you have to go hunt down hardware separate?

Question by: Curt E on Sep 18, 2025, 10:26 AM

Everything ships together in the box. You get the mounting bolts, lock washers, and a Buna-N O-ring already included, so there's no extra trip to the supply house before you can get it installed.

Answer by: Customer Support on Sep 19, 2025, 8:01 PM

got a 3.5 inch code 61 flange line, does this adapter take me over to 3.5 pipe with a socket weld end?

Question by: Joyce B on Mar 8, 2026, 7:02 PM

Built for that exact changeover, it mates a 3.50 inch SAE Code 61 4-bolt flange on the hydraulic side to a 3.50 inch pipe socket weld end on the other side, using an O-ring half face seal at the flange pad.

Answer by: Customer Support on Mar 10, 2026, 1:08 PM

Similar Products

Model Number	Includes	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	K	Price	Buy Now
W72-56-56U	Mounting bolts, lock washers and Buna-N O-Ring	3.5	3.5	5.5	6	2.75	4.75	1.44	1.19	4.095	3.502 in	0.656
