Steel 4-Bolt Flange Adapter, 2.00 Inch Code 61 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight

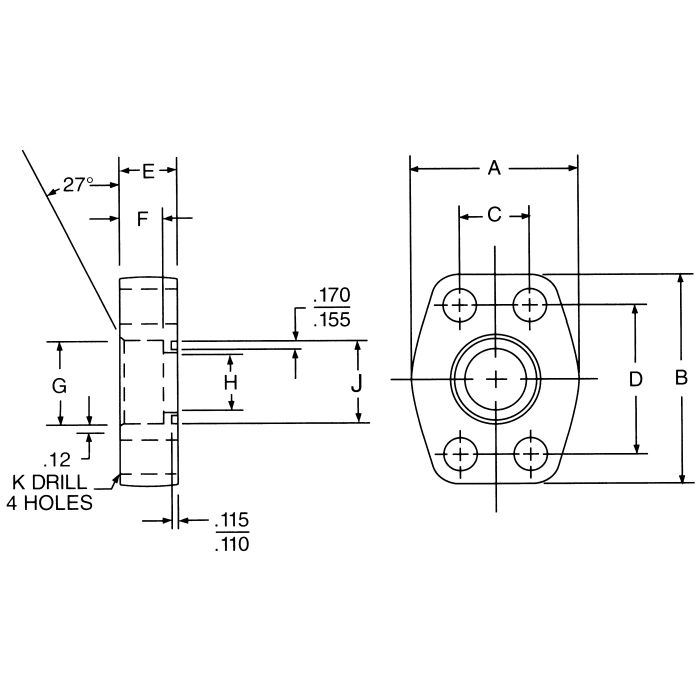

A 3.81	B 4	C 1.69	D 3.06	E 1.38	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.88	G 2.41	H 2 in	Includes Mounting bolts, lock washers and Buna-N O-Ring	K 0.53	Pad Size 2	Pipe Size 2	Supplier Part Number W4-32-32U	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DS79, Alternate Part Number J01025	Product Weight 3.17 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an old flange to pipe adapter, is this one a straight 2 inch Code 61 flange over to 2 inch female NPT?

Question by: Sheila R on Oct 23, 2025, 2:01 PM

You are looking at a straight adapter with a 2.00 inch Code 61 4-bolt flange on one side and a 2.00 inch female NPT connection on the other, using an O-ring half at the flange end.

Answer by: Customer Support on Oct 25, 2025, 6:17 AM

What all comes with this flange adapter when it ships? Trying to figure out if I need to order hardware separate or if it's ready to bolt up.

Question by: Terry S on Apr 29, 2025, 4:11 PM

Everything you need to mount it comes included. The adapter ships with mounting bolts, lock washers, and a Buna-N O-ring, so you're not tracking down hardware before you can get it installed.

Answer by: Customer Support on May 1, 2025, 3:51 PM

Similar Products

Model Number	Includes	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	K
W4-20-20	None	1.25	1.25	2.875	3.125	1.188	2.313	0.94	0.69	1.672	1.25 in	0.469
W4-24-24U	Mounting bolts, lock washers and Buna-N O-Ring	1.5	1.5	3.25	3.688	1.406	2.75	1.19	0.75	1.922	1.5 in	0.531
W4-32-32U	Mounting bolts, lock washers and Buna-N O-Ring	2	2	3.813	4	1.688	3.063	1.38	0.875	2.406	2 in	0.531
