Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight

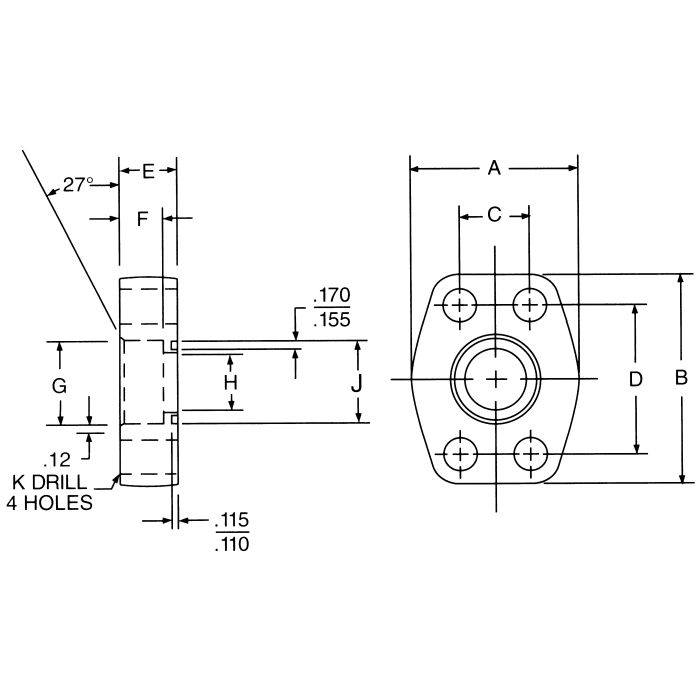

A 3.25	B 3.69	C 1.41	D 2.75	E 1.19	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.75	G 1.92	H 1.5 in	Includes Mounting bolts, lock washers and Buna-N O-Ring	K 0.53	Pad Size 1.50	Pipe Size 1.50	Supplier Part Number W4-24-24U	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DS78	Product Weight 2.96 lbs

Product Questions & Answers 2

Product Questions & Answers

What all comes with this flange adapter when it ships, or do I need to track down hardware separate?

Question by: Wayne H on May 12, 2025, 6:31 AM

Hardware's included right in the box. You get the mounting bolts, lock washers, and a Buna-N O-ring, so you're not scrambling for fasteners before you can get it installed.

Answer by: Customer Support on May 13, 2025, 4:54 PM

Will this flange adapter work with standard NPT fittings?

Question by: Sheila M on Apr 21, 2025, 7:54 PM

Yes, this steel 4-bolt flange adapter is designed with a 1.50 inch female NPT, which should work with standard NPT fittings of the same size.

Answer by: Customer Support on Apr 23, 2025, 5:29 PM

Similar Products

Model Number	Includes	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	K
W4-20-20	None	1.25	1.25	2.875	3.125	1.188	2.313	0.94	0.69	1.672	1.25 in	0.469
W4-24-24U	Mounting bolts, lock washers and Buna-N O-Ring	1.5	1.5	3.25	3.688	1.406	2.75	1.19	0.75	1.922	1.5 in	0.531
W4-32-32U	Mounting bolts, lock washers and Buna-N O-Ring	2	2	3.813	4	1.688	3.063	1.38	0.875	2.406	2 in	0.531
