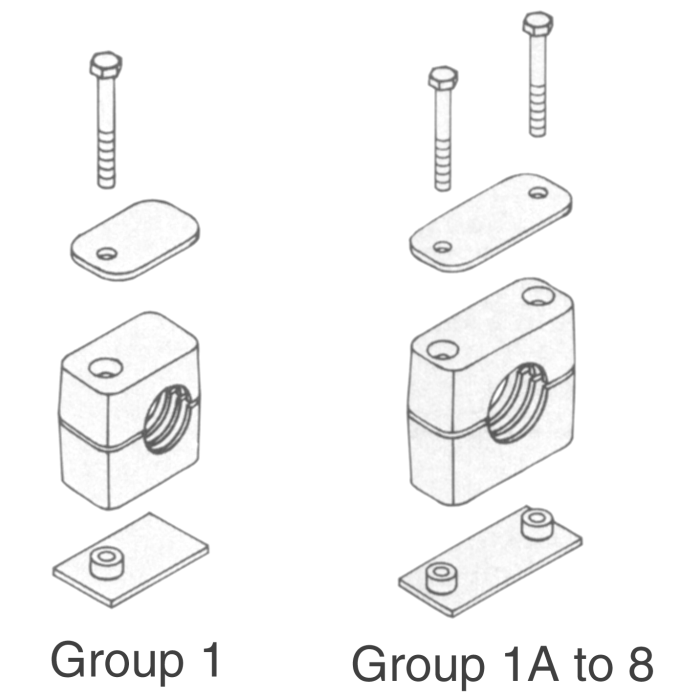

Standard Series Pipe & Tubing Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate
Products
| Model Number | Size | Tube Size | Pipe Size | Hose O.D. | Group | Materials | Body I.D. | Package Qty. | B2 | H1 | H3 | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP5370PPHDPAS-K | 37.0 mm | 1.46 | 5 | Polypropylene | Smooth | 1 | 1.18 | 2.28 | 1.25 |
|
|||
| SP6445PPHDPAS-K | 44.5 mm | 1.75 | 1.75 | 6 | Polypropylene | Smooth | 1 | 1.18 | 2.59 | 1.42 |
|
||
| 6100081755 | 6.4 mm | 0.25 | 1 | Polypropylene | Profiled | 1 | 1.18 | 1.06 | 0.65 |
|
|||
| 6100081795 | 9.5 mm | 0.25 | 1 | Polypropylene | Profiled | 1 | 1.18 | 1.06 | 0.65 |
|
|||
| STNA11119 | 16 mm | 0.625 | 2 | Polypropylene | Profiled | 1 | 1.18 | 1.3 | 0.77 |
|
|||
| 6100082100 | 21.3 mm | 0.5 | 3 | Polypropylene | Profiled | 1 | 1.18 | 2.28 | 0.83 |
|
|||
| STNA11184 | 26.9 mm | 0.75 | 4 | Polypropylene | Profiled | 1 | 1.18 | 1.65 | 0.94 |
|
|||
| STNA11217 | 38 mm | 1.5 | 5 | Polypropylene | Profiled | 1 | 1.18 | 2.28 | 1.26 |
|
