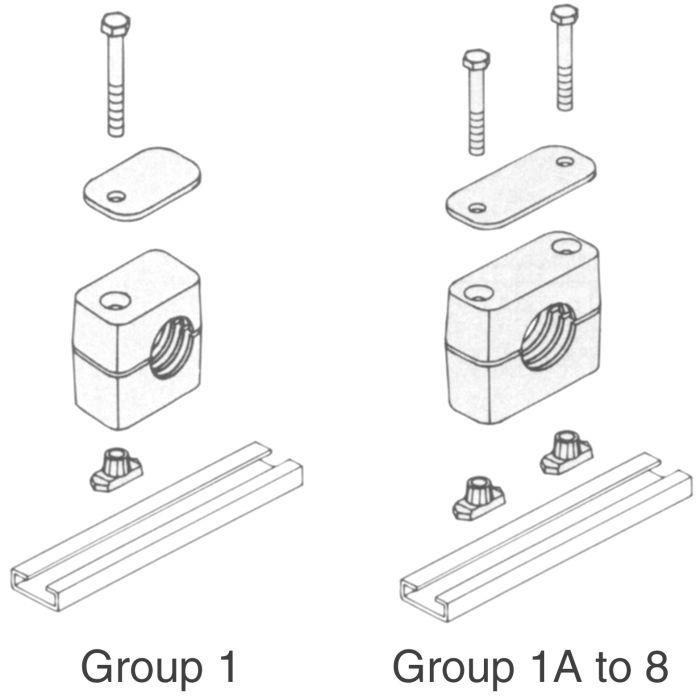

Standard Series Pipe & Tubing Polypropylene Support Clamp, Rail Mountable, Hex Head Bolts With Cover Plate, 22 mm mm Size

B2 1.18	Body I.D. Profiled	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 3	H1 1.42	Hose O.D. 0.87	Materials Polypropylene	Package Qty. 1	Size 22 mm	Supplier Part Number 6100080872	Thread Sealant No	Alternate Part Numbers Alternate Part Number 6100080872, Alternate Part Number C1EZ58, Alternate Part Number C1ML72, Alternate Part Number SM-322-PP-DP-AS-U-W3#K, Alternate Part Number SM-322-PP-DP-AS-U-W3-K, Alternate Part Number SM322PPDPASUW3#K, Alternate Part Number SM322PPDPASUW3K	Product Weight 0.21 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this here clamp is gonna hold up alright outside? We get some pretty nasty weather comin' through.

Question by: Bonnie B on Jan 23, 2026, 6:53 AM

This polypropylene clamp is rated to handle temperatures from -22°F all the way up to 194°F, so it should be suitable for a wide range of outdoor conditions.

Answer by: Customer Support on Jan 25, 2026, 6:44 AM

got a 22mm line, what’s the actual hose OD this clamp is meant to grab

Question by: Bonnie B on Aug 1, 2025, 11:52 AM

The 22 mm size corresponds to a hose outside diameter of 0.866 inches, so it is intended to support a line with that OD.

Answer by: Customer Support on Aug 3, 2025, 6:56 AM

Similar Products

Model Number	Size	Tube Size	Pipe Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H1
STNA10496	13.5 mm		0.25		2	Polypropylene	Profiled	1	1.18	1.3
STNA10503	16 mm	0.625			2	Polypropylene	Profiled	1	1.18	1.3
STNA10532	22 mm			0.866	3	Polypropylene	Profiled	1	1.18	1.42
6100080853	19 mm	0.75			3	Polypropylene	Profiled	1	1.18	1.42
6100080868	21.3 mm		0.5		3	Polypropylene	Profiled	1	1.18	1.42
