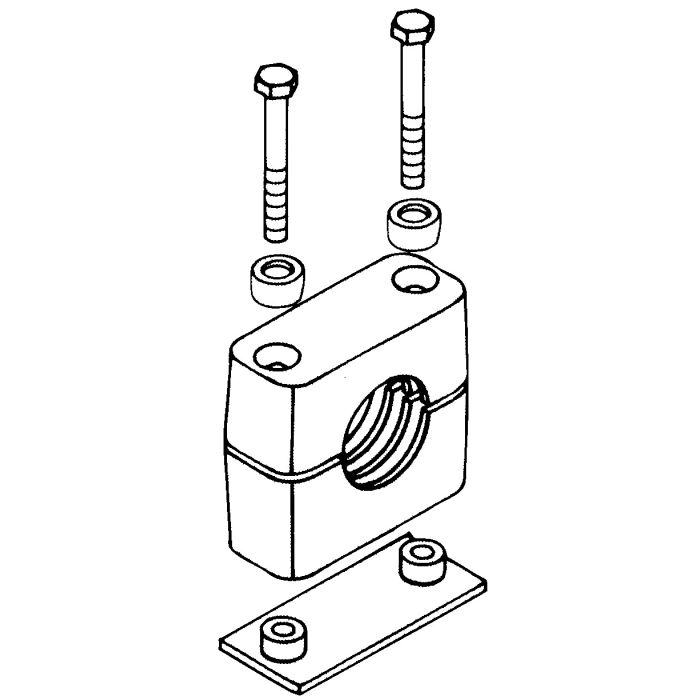

main product photo

Standard Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Spacers, 35.0 mm mm Size

Ask A Question
B2
1.19
Body I.D.
Smooth
Brand
Stauff Corporation
Brand
Stauff Corporation
Pack Size
1.00
UOM
EA
Group
5
H1
2.33
H3
1.28
Hose O.D.
1.38
Materials
Polypropylene
Package Qty.
1
Size
35.0 mm
Supplier Part Number
021419-003
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 021419-003, Alternate Part Number C1FH29, Alternate Part Number SP535PPHASE-U-W3#K, Alternate Part Number STNA23985
Product Weight
0.32 lbs
Product Questions & Answers 1

Product Questions & Answers

got a 35mm line I need to secure to a steel frame -- can this clamp be welded straight to it or does it need to bolt down somewhere?
Question by: Harvey R on May 26, 2025, 1:54 PM
The single weld plate on this clamp is built for exactly that kind of installation. You weld the plate directly to your steel frame or structure, and the clamp body fastens to it using the hex head bolts with spacers. No secondary bracket or rail needed for this style, though rail mounting is also an option if your setup calls for it.
Answer by: Customer Support on May 28, 2025, 10:08 AM

Similar Products

Model Number Size Tube Size Pipe Size Hose O.D. Group Materials Body I.D. Package Qty. B2 H1 H3 Price Buy Now
SP5350PPHASE-BAG 35.0 mm 1.38 5 Polypropylene Smooth 1 1.19 2.33 1.28
