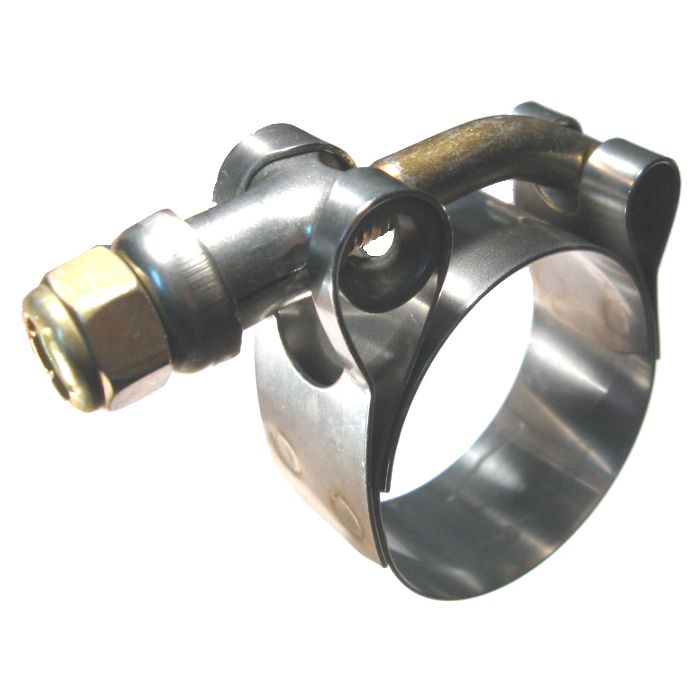

TBC Series Stainless Steel T-Bolt Band Clamps
Materials |
301 stainless steel band (.025” thick) and carbon steel bolt with self-locking nut. |
Max. Recommended Torque |
70 in. lbs. |
Tightening Method |
Hexagon T-bolt. |
Products
| Model Number | Width (in) | Minimum Diameter | Maximum Diameter | Price | Buy Now |
|---|---|---|---|---|---|
| TBC150 | 0.75 | 1.2813 | 1.5938 |
|
|
| TBC175 | 0.75 | 1.5313 | 1.8438 |
|
|
| TBC188 | 0.75 | 1.6563 | 1.9688 |
|
|
| TBC200 | 0.75 | 1.7813 | 2.0938 |
|
|
| TBC250 | 0.75 | 2.2813 | 2.5938 |
|
|
| TBC312 | 0.75 | 2.9063 | 3.2188 |
|
|
| TBC131 | 0.75 | 1.1875 | 1.4375 |
|
|
| TBC225 | 0.75 | 2.0313 | 2.3438 |
|
|
| TBC238 | 0.75 | 2.1563 | 2.4688 |
|
|
| TBC256 | 0.75 | 2.3438 | 2.6563 |
|
|
| TBC263 | 0.75 | 2.4063 | 2.7188 |
|
|
| TBC275 | 0.75 | 2.5313 | 2.8438 |
|
|
| TBC288 | 0.75 | 2.6563 | 2.9688 |
|
|
| TBC300 | 0.75 | 2.7813 | 3.0938 |
|
|
| TBC325 | 0.75 | 3.0313 | 3.3438 |
|
|
| TBC350 | 0.75 | 3.2813 | 3.5938 |
|
|
| TBC375 | 0.75 | 3.5313 | 3.8438 |
|
|
| TBC400 | 0.75 | 3.7813 | 4.0938 |
|
|
| TBC425 | 0.75 | 4.0313 | 4.3438 |
|
|
| TBC450 | 0.75 | 4.2813 | 4.5938 |
|
|
| TBC475 | 0.75 | 4.5313 | 4.8438 |
|
|
| TBC500 | 0.75 | 4.7813 | 5.0625 |
|
|
| TBC550 | 0.75 | 5.2813 | 5.5938 |
|
