Stainless Mjic X Mm Standpipe

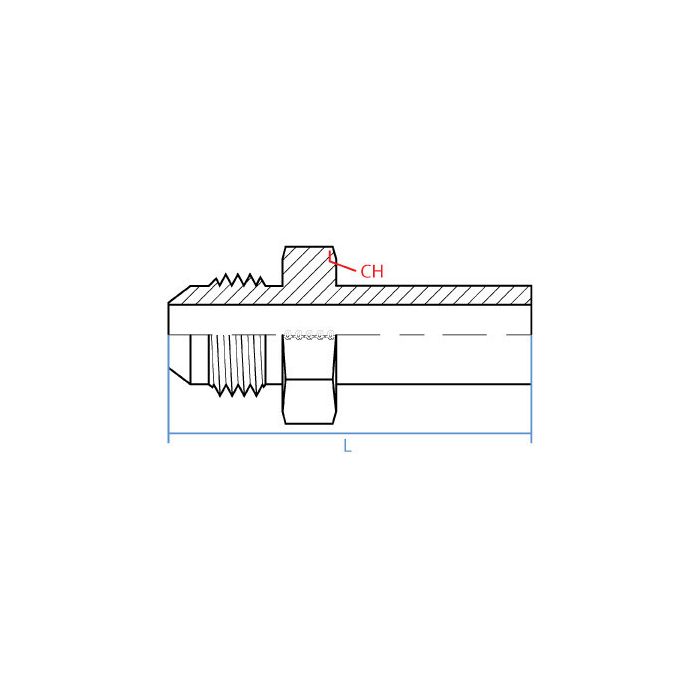

CH Width 32mm	L Length 63.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 20mm	Side 2 Gender F	Side 2 Size 20mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-12-20	Product Weight 0.35 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a fitting that's 20mm DIN standpipe on one end, will this adapter hook up to a 3/4" JIC male line on the other side?

Question by: Melvin R on Apr 20, 2025, 6:57 AM

That's what this piece is built for. One end is a male JIC connection, 1-1/16-12 UN thread, 3/4" size, and the other end is a female 20mm DIN standpipe. So if you've got a JIC male line and a DIN standpipe port, this bridges the two without any extra fittings in between.

Answer by: Customer Support on Apr 21, 2025, 8:08 AM
