Stainless Mjic X Mbspp

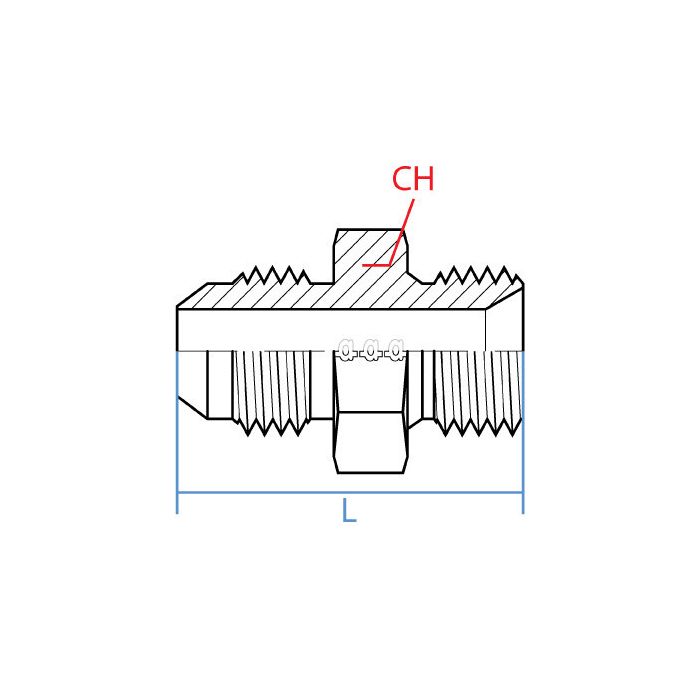

CH Width 22mm	L Length 41.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-08-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running metric BSPP fittings on one end and JIC on the other, does this adapter go between them without needing any extra pieces?

Question by: Wade L on May 15, 2025, 10:46 AM

That's what this one's built for. One end is a 3/8" male BSPP with a G 3/8-19 thread, and the other is a 1/2" male JIC running 3/4-16 UNF. Both ends are male, so you'd be threading this directly into female JIC and female BSPP ports on each side. No additional fittings needed to bridge those two thread standards.

Answer by: Customer Support on May 16, 2025, 12:37 PM
