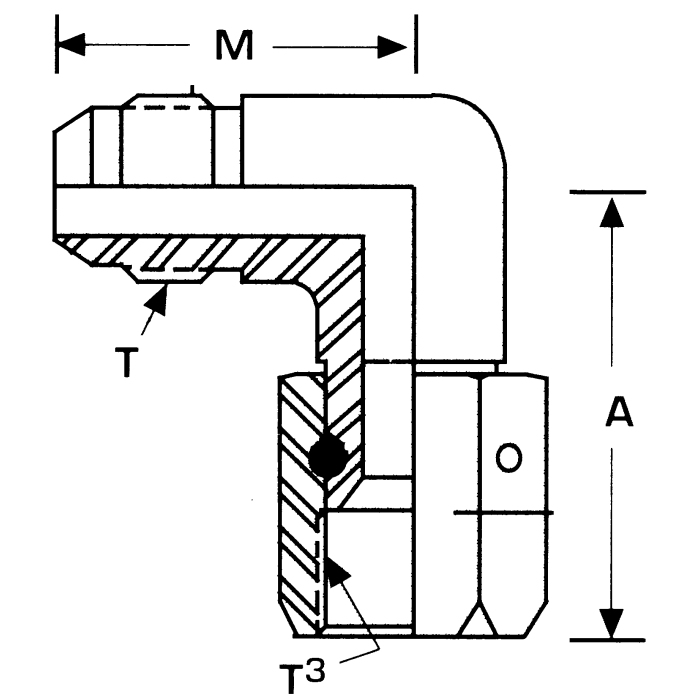

Stainless Steel Adapters, Male JIC 37 deg Flare To Female JIC 37 deg Flare Swivel, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 2 | Thread 3 | A | M | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| J6SE | 0.38 | 9/16-18 | 9/16-18 | 1.25 | 1.01 |
|
|
| J10SE | 0.63 | 7/8-14 | 7/8-14 | 1.62 | 1.45 |
|
|
| J12SE | 0.75 | 1-1/16-12 | 1-1/16-12 | 1.75 | 1.66 |
|
|
| J16SE | 1 | 1-5/16-12 | 1-5/16-12 | 2 | 1.81 |
|
|
| J4SE | 0.25 | 7/16-20 | 7/16-20 | 1 | 0.89 |
|
|
| J8SE | 0.5 | 3/4-16 | 3/4-16 | 1.38 | 1.25 |
|
