Adaptall Stainless Male Bspt Nipple SS9010-04-04

Specifications

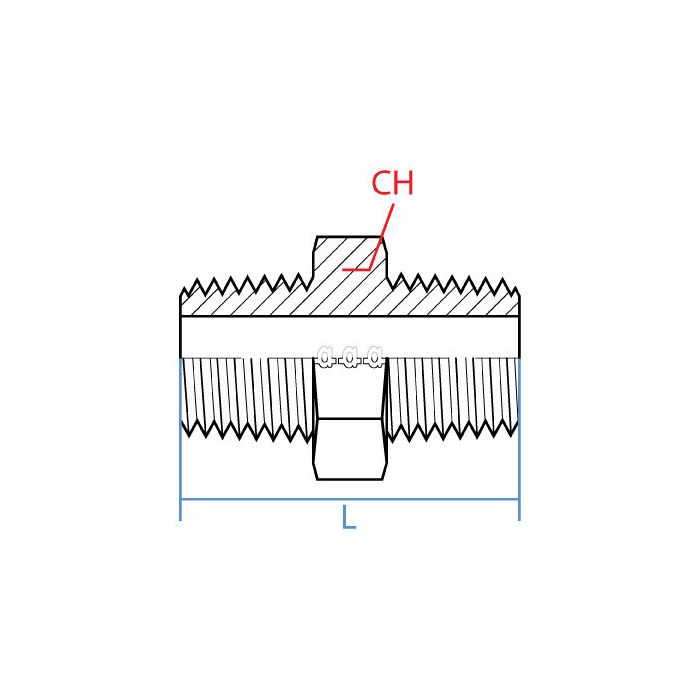

CH Width 14mm	L Length 35.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout R 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspt	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9010-04-04	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for this lil' fella?

Question by: Steve F on Mar 14, 2026, 2:50 PM

This nipple fitting takes a 14mm wrench.

Answer by: Customer Support on Mar 16, 2026, 7:56 AM

got two female BSPT ports that need tied together, is this the right little nipple for that?

Question by: Lyle F on Jun 7, 2025, 9:04 PM

For joining two female BSPT ports inline, it fits the bill since it has male BSPT threads on both ends, each one R 1/4-19.

Answer by: Customer Support on Jun 9, 2025, 8:44 AM

both ends on this thing are 1/4 BSPT male, right? trying to connect two female ports inline without adding any extra fittings in between

Question by: Connie R on Aug 14, 2025, 6:57 PM

Correct on both counts. Each end carries a 1/4" R 1/4-19 BSPT male thread, so it drops straight into two opposing female BSPT ports and keeps everything in a single inline connection. No adapters or additional fittings needed in between. At 35.6mm long, it stays pretty compact, which helps when clearance is tight around the ports.

Answer by: Customer Support on Aug 16, 2025, 6:45 PM
