Stainless M.Metric X Fem. Npt

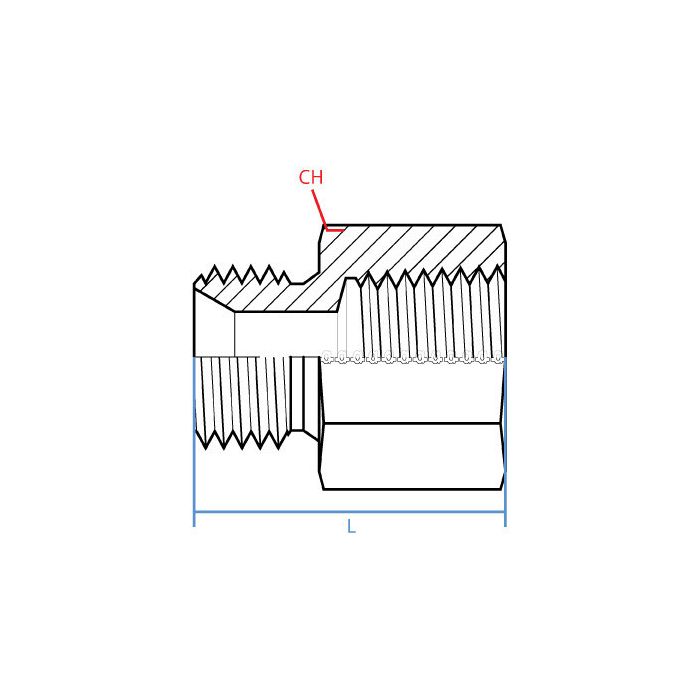

CH Width 19mm	L Length 33.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size 14mm	Side 1 Type Metric	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9235-14-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on my pump housing and need to tie into some NPT fittings downstream, will this adapter handle that kind of crossover without needing anything extra in between?

Question by: Todd G on Sep 18, 2025, 6:12 PM

Straight shot, one fitting. The M14 x 1.5 male end threads into your metric port and the 1/4-18 NPTF female end accepts a standard NPT male fitting, so you're bridging those two thread standards in a single piece. No additional adapters or custom fab work needed to make that connection.

Answer by: Customer Support on Sep 20, 2025, 6:29 AM
