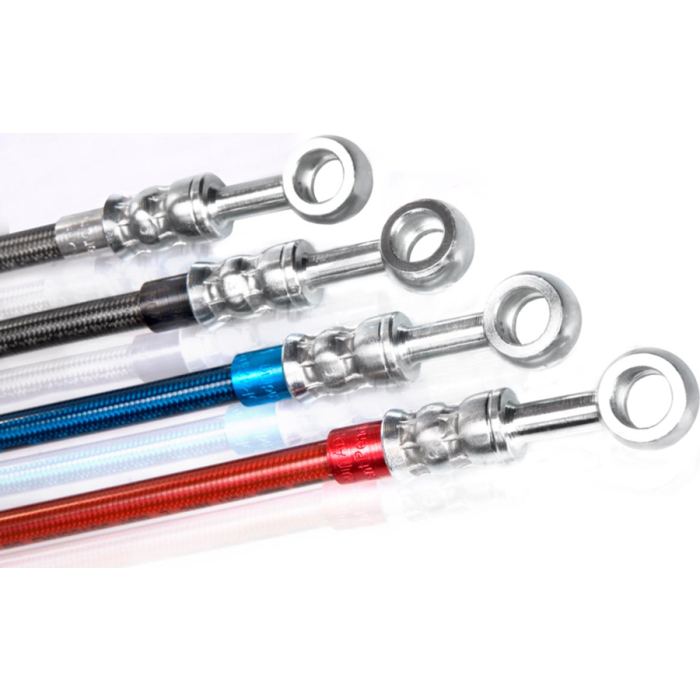

High Performance Stainless Steel Braided Brake Hose, Blue, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Burst Pressure 12000	Color Blue	Brand Brakequip, LLC	Brand Brakequip	Pack Size 12.00	UOM FT	Hose I.D. 0.13	Hose O.D. 0.25	Maximum Operating Pressure 3000	Minimum Bend Radius 2	Minimum Bend Radius 2	O.D. Including Jacket 0.30	Supplier Part Number BQ303BL	Alternate Part Numbers Alternate Part Number C1LZ12, Alternate Part Number MI-08748243, Alternate Part Number MINO-11456X10038	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight bend to make, what’s the smallest radius this blue BrakeQuip hose will handle without kinking

Question by: Earl T on Oct 8, 2025, 5:18 PM

For routing, the minimum bend radius is 2 inches. Staying at or above that bend helps keep the PTFE smooth-bore tube and the 304 stainless 4-wire braid from being forced into a kinked shape.

Answer by: Customer Support on Oct 10, 2025, 6:28 AM

What kind of fittings work with this hose? Need to make sure I get the right ones.

Question by: Shawn C on Dec 18, 2025, 1:30 PM

BrakeQuip crimp fittings are specifically designed for secure connections with this hose.

Answer by: Customer Support on Dec 20, 2025, 1:24 PM

what's the temp range on this hose? running it on a system that sees some pretty cold mornings and hot afternoons both

Question by: Rex B on Feb 13, 2026, 4:26 PM

Rated from -100°F up to 500°F, so wide swings between cold starts and high operating temps aren't going to be a problem. The PTFE smooth bore tube and stainless steel braid hold up well across that full range without softening or getting brittle at the extremes.

Answer by: Customer Support on Feb 15, 2026, 6:45 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	O.D. Including Jacket	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Color
BQ301	0.125	0.25	0.25	3000	12000	2	No Jacket
BQ303	0.125	0.25	0.295	3000	12000	2	Clear
BQ303BK	0.125	0.25	0.295	3000	12000	2	Black
BQ303BL	0.125	0.25	0.295	3000	12000	2	Blue
BQ303RD	0.125	0.25	0.295	3000	12000	2	Red
