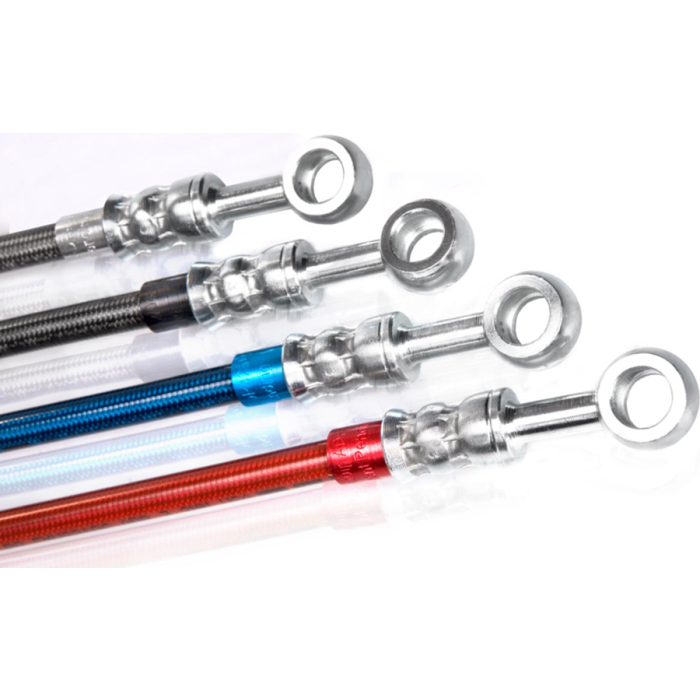

High Performance Stainless Steel Braided Brake Hose, Black, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Burst Pressure
12000
Color
Black
Brand
Brakequip, LLC
Brand
Brakequip
Pack Size
12.00
UOM
FT
Hose I.D.
0.13
Hose O.D.
0.25
Maximum Operating Pressure
3000
Minimum Bend Radius
2
Minimum Bend Radius
2
O.D. Including Jacket
0.30
Supplier Part Number
BQ303BK
Alternate Part Numbers
Alternate Part Number C1LZ11, Alternate Part Number MI-08748242, Alternate Part Number MINO-11456X10037
Product Weight
0.18 lbs

Product Questions & Answers

Running brake lines on a custom build and need something that'll hold up to heat and pressure without giving me fits. This hose rated for anything serious?
Question by: Larry M on May 19, 2025, 8:02 AM
Rated to 3000 PSI operating pressure with a burst threshold of 12,000 PSI, so it's got plenty of headroom for hydraulic brake systems. The PTFE smooth bore inner tube and 304 stainless 4-wire braid reinforcement handle both pressure and heat well. Temperature range runs from -100°F all the way up to 500°F, so heat soak from engines or brakes cycling hard isn't going to be a problem.
Answer by: Customer Support on May 20, 2025, 3:26 PM

Similar Products

Model Number Hose I.D. Hose O.D. O.D. Including Jacket Maximum Operating Pressure Burst Pressure Minimum Bend Radius Color Price Buy Now
BQ301 0.125 0.25 0.25 3000 12000 2 No Jacket
BQ303 0.125 0.25 0.295 3000 12000 2 Clear
BQ303BK 0.125 0.25 0.295 3000 12000 2 Black
BQ303BL 0.125 0.25 0.295 3000 12000 2 Blue
BQ303RD 0.125 0.25 0.295 3000 12000 2 Red
