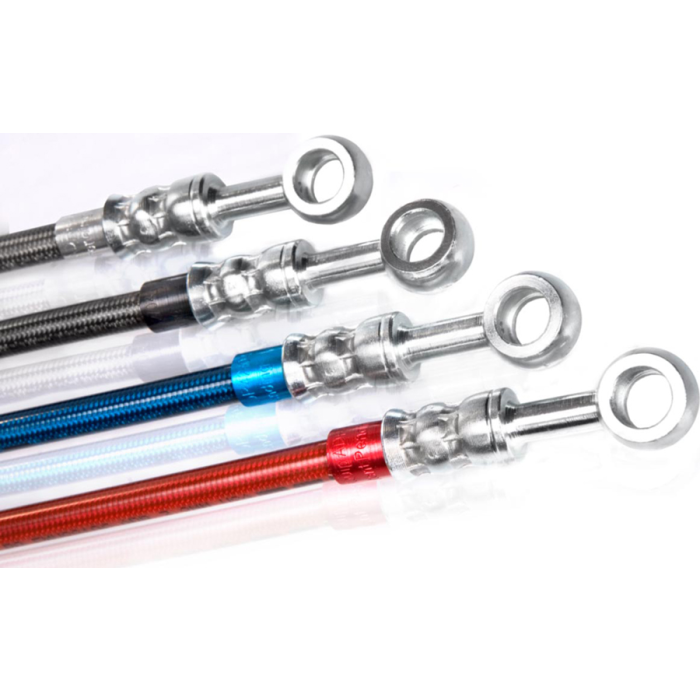

High Performance Stainless Steel Braided Brake Hose, No Jacket, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Burst Pressure 12000	Color No Jacket	Brand Brakequip, LLC	Brand Brakequip	Pack Size 12.00	UOM FT	Hose I.D. 0.13	Hose O.D. 0.25	Maximum Operating Pressure 3000	Minimum Bend Radius 2	Minimum Bend Radius 2	O.D. Including Jacket 0.25	Supplier Part Number BQ301	Alternate Part Numbers Alternate Part Number C1LY98, Alternate Part Number MI-08748240, Alternate Part Number MINO-11456X10035	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot to run a brake line, how tight can i bend this hose without kinkin it?

Question by: Rod C on Feb 3, 2026, 4:45 PM

For routing, the minimum bend radius is 2 inches. Staying at or above that bend radius helps keep the PTFE smooth bore tube and the 304 stainless 4 wire braid from being stressed in a tight turn.

Answer by: Customer Support on Feb 5, 2026, 6:17 AM

Running a hydraulic brake line through a pretty tight spot on a custom build. What's the smallest bend I can make with this hose before I start worrying about kinking it up?

Question by: Hugh G on Oct 20, 2025, 11:51 AM

Two inches is the minimum bend radius on this one. Anything tighter than that and you risk compromising the hose structure, which you definitely don't want in a brake application. For most tight routing situations on custom builds, two inches gives you enough flexibility to work around brackets and frame rails without pushing the hose past its limits.

Answer by: Customer Support on Oct 22, 2025, 9:00 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	O.D. Including Jacket	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Color
BQ301	0.125	0.25	0.25	3000	12000	2	No Jacket
BQ303	0.125	0.25	0.295	3000	12000	2	Clear
BQ303BK	0.125	0.25	0.295	3000	12000	2	Black
BQ303BL	0.125	0.25	0.295	3000	12000	2	Blue
BQ303RD	0.125	0.25	0.295	3000	12000	2	Red
