Adaptall Stainless 316 Mjic X Mbspp SS9005-04-04

Specifications

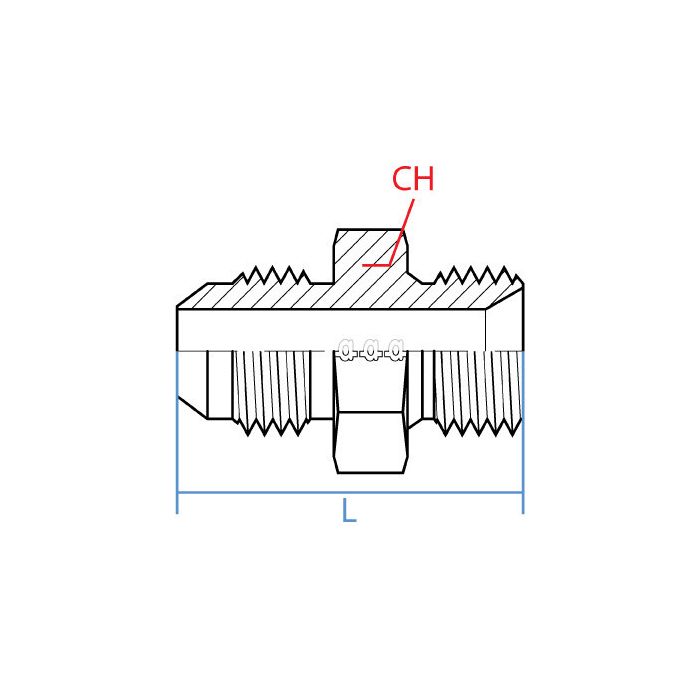

CH Width 19mm	L Length 33.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-04-04	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 7/16-20 JIC male, and the port on the block is G 1/4-19 BSPP. is this the right little adapter to tie those together

Question by: Eddie M on Apr 20, 2025, 7:32 PM

For that exact thread match, yes. One side is a 7/16 - 20 UNF male JIC and the other side is a G 1/4 - 19 male BSPP, and both ends are the 1/4 inch size.

Answer by: Customer Support on Apr 22, 2025, 7:09 PM

got a piece of equipment running a G 1/4 BSPP port and need to tie into a JIC line, this the right adapter for that?

Question by: Janice W on May 17, 2025, 6:16 PM

That's what this one's built for. One end is a 7/16-20 UNF male JIC and the other is a G 1/4-19 male BSPP, both at 1/4" size. So if you've got a female JIC fitting on your line and a female BSPP port on the equipment, this bridges those two standards without any additional hardware in between.

Answer by: Customer Support on May 19, 2025, 5:35 PM
