Stainless 316 Bspp Coupling

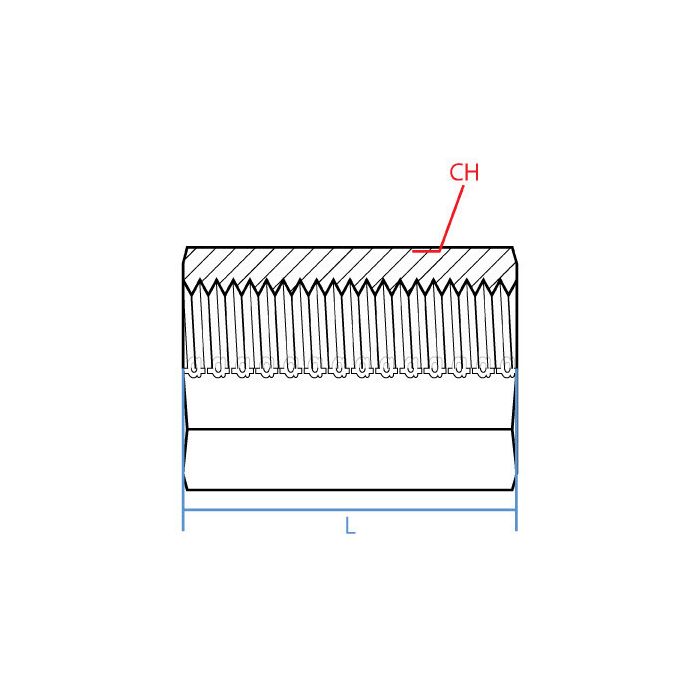

CH Width 19mm	L Length 28mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9043-04-04	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this coupling hold up if it's constantly exposed to hydraulic fluid?

Question by: Phil S on Apr 19, 2025, 11:05 AM

Stainless 316 construction provides good corrosion resistance in hydraulic applications, so it should hold up well to hydraulic fluid exposure.

Answer by: Customer Support on Apr 20, 2025, 1:29 PM

got two 1/4 bsp ports i need to tie together, is this the right coupler or am i missin something

Question by: Rhonda T on Nov 27, 2025, 10:05 AM

For connecting two matching ports, it’s a straight coupling with female BSPP threads on both ends, sized 1/4 inch. Both sides are called out as G 1/4 - 19, so it’s meant to join two G 1/4 - 19 male BSPP connections.

Answer by: Customer Support on Nov 29, 2025, 8:16 AM
