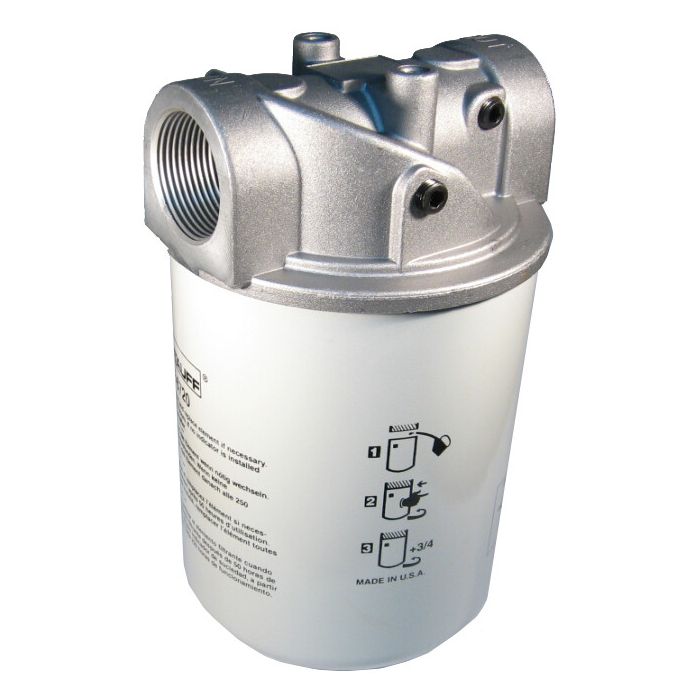

SSF120/160 Series Spin-On Suction / Return Filter, SAE-20 Ports, 6.63 inch 10 Micron Nominal Paper Element, 15.00 PSI Bypass Spring

Bypass Spring 15	Alternate Part Numbers Alternate Part Number 6100083996, Alternate Part Number C1GA60, Alternate Part Number MI-08752634, Alternate Part Number MINO-02491X93348, Alternate Part Number SSF-160-B1.0-SF-6720, Alternate Part Number SSF160B1.7SF6720, Alternate Part Number STNA43442	Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Element 10 Micron Nominal Paper	Features All 4 indicator ports machined & plugged	Includes None	Length 6.63 inch	Port Size SAE-20	Rated Flow 60	Rated Flow 60	Supplier Part Number STNA43442	Product Weight 3.64 lbs

Product Questions & Answers 3

Product Questions & Answers

got a return line setup on a skid steer, is this filter meant for that kind of job?

Question by: Rick B on Sep 18, 2025, 9:25 AM

For low pressure return line filtration, this SSF120/160 spin-on assembly is a good match for mobile and industrial equipment. It is rated 60 GPM, uses a 10 micron nominal paper element, and the head is built for up to 200 PSI on the housing.

Answer by: Customer Support on Sep 19, 2025, 12:16 PM

Filter says it comes with a 15 PSI bypass spring, but I also seen mention of a 25 PSI being standard, which one does it actually ship with?

Question by: Earl W on Jan 1, 2026, 3:30 PM

The complete assembly includes an optional bypass spring, and the default when ordering the full assembly is a 25 PSI spring. The product you're looking at here is specifically configured with a 15 PSI bypass spring, so that's what you're getting with this particular part number. If you need the higher 25 PSI spring, that would be a different configuration.

Answer by: Customer Support on Jan 3, 2026, 6:50 AM

reckon this filter will hold up okay in a hydraulic system running at, say, 180 PSI?

Question by: Curt P on Apr 27, 2025, 9:26 PM

The filter housing is rated for a maximum operating pressure of 200 PSI, so it should be suitable for your system at 180 PSI.

Answer by: Customer Support on Apr 29, 2025, 2:34 PM
