Stainless Mjic X Male Din2353S

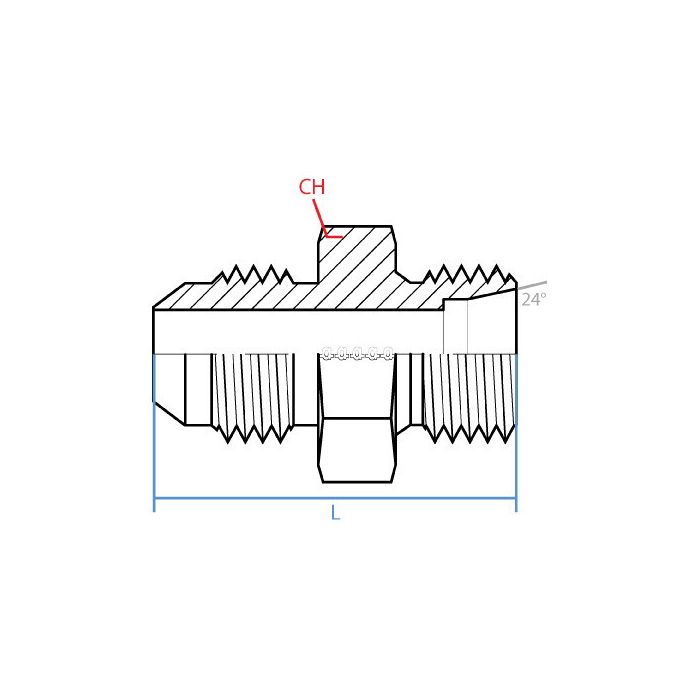

CH Width 32mm	L Length 42.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-08-S16-24	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line running M24 x 1.5 DIN tube fittings on one end and JIC on the other, does this adapter cross those two over in a straight shot?

Question by: Rhonda P on Aug 29, 2025, 5:28 PM

That's what this one does. One side is a 3/4-16 UNF male JIC, sized for 1/2" fittings, and the other is an M24 x 1.5 male DIN tube connection. Both ends are male, the shape is straight through, so there's no offset or angle to account for. If your line needs to bridge those two thread standards without any bends, this fitting handles it clean.

Answer by: Customer Support on Aug 31, 2025, 6:20 AM

got a hose end that’s 3/4-16 UNF JIC male, what’s on the other side of this adapter?

Question by: Clint M on May 7, 2025, 8:44 AM

On the opposite end, it has a male DIN 2353 tube connection with an M24 x 1.5 thread, listed as size S16.

Answer by: Customer Support on May 8, 2025, 9:27 PM
