Stainless Mjic X Male Din2353S SS9606-06-S12-20

Specifications

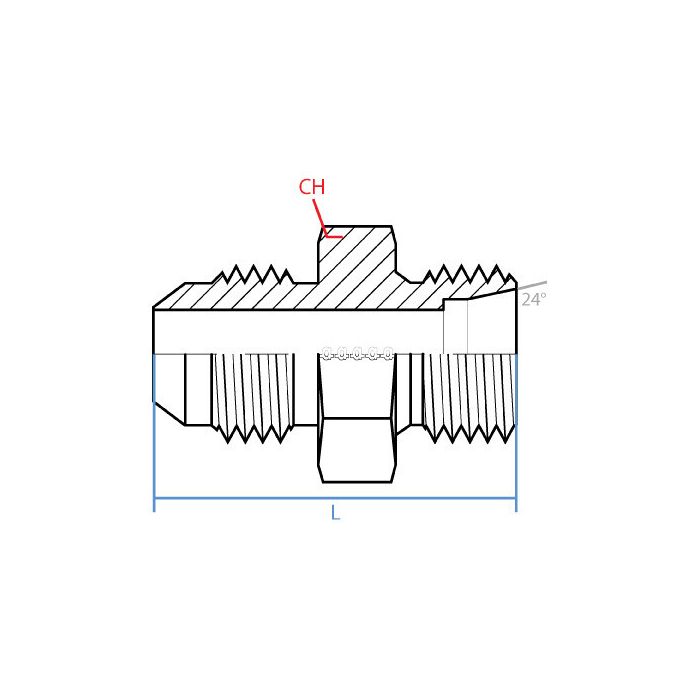

CH Width 25.5mm	L Length 36.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-06-S12-20	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running JIC fittings on one end and the other side hooks into a DIN metric tube connection, this adapter gonna bridge that gap alright?

Question by: Wes W on Jan 15, 2026, 11:07 AM

That's what it's built for. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other is a Male DIN 2353 tube fitting on an M20 x 1.5 thread in the S12 series. So if your circuit is mixing those two connection standards, this is a straight shot between them with no extra fittings needed.

Answer by: Customer Support on Jan 17, 2026, 10:43 AM

Will this here fitting hold up if I'm running hydraulic oil through it all day long?

Question by: Debbie J on Dec 4, 2025, 5:45 PM

Constructed from stainless steel, this adapter is suitable for continuous-duty hydraulic systems, especially those where corrosion is a concern.

Answer by: Customer Support on Dec 6, 2025, 6:53 AM

trying to tie a 3/8 jic hose end into a din tube setup, is this the right adapter for that?

Question by: Cody T on Apr 16, 2025, 7:29 AM

For mixing standards in one circuit, it bridges a 3/8 inch Male JIC end with 9/16-18 UNF threads to a Male DIN 2353 tube fitting end with M20 x 1.5 threads in the S12 series, all in a straight body.

Answer by: Customer Support on Apr 17, 2025, 7:49 AM
