Stainless Mjic X Male Din2353S SS9606-04-S08-16

Specifications

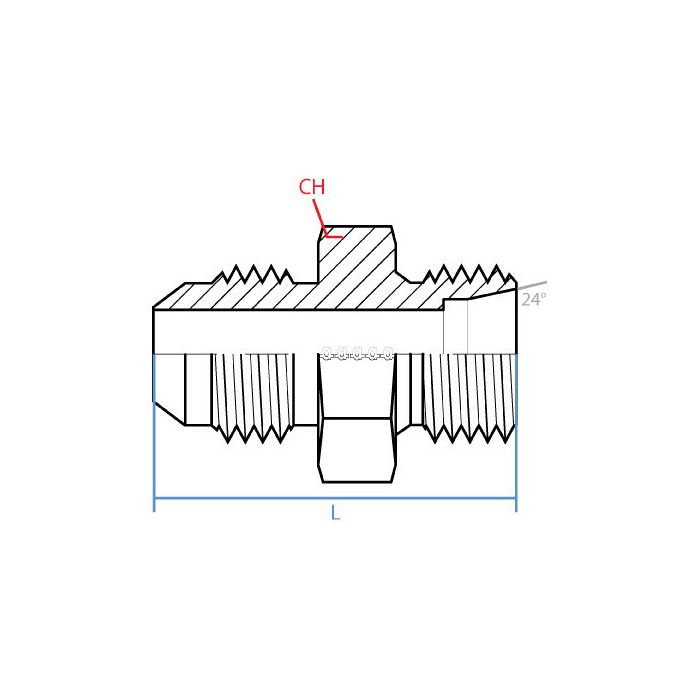

CH Width 22mm	L Length 33.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-04-S08-16	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a JIC line I need to tie into a DIN metric fitting on some imported hydraulic equipment. This straight adapter work for that kind of cross-standard connection?

Question by: Stan M on Nov 10, 2025, 12:57 PM

That's the kind of job this fitting handles. One end is a 7/16-20 UNF male JIC thread, which is your standard inch-side connection, and the other is an M16 x 1.5 male DIN tube fitting in an S08 size. So if you've got a JIC hose or line on one side and a DIN2353S port on the other, this bridges that gap in a straight configuration. The stainless steel construction holds up well in environments where corrosion is a concern, which is common when you're mixing equipment from different markets.

Answer by: Customer Support on Nov 12, 2025, 6:57 AM

So this here adapter, it's stainless steel, right? Just making sure 'fore I order.

Question by: Billy G on Nov 13, 2025, 7:57 AM

Correct, this Adaptall fitting is made from stainless steel, offering good durability and corrosion resistance for hydraulic applications.

Answer by: Customer Support on Nov 15, 2025, 6:03 AM

got a hose end that’s 7/16-20 JIC, will this adapter mate up to it and what’s on the other side?

Question by: Frank H on May 25, 2025, 9:01 AM

On the JIC side, it is a male 7/16-20 UNF in a 1/4 inch size. The other end is a male DIN 2353S tube connection with an M16 x 1.5 thread and an S08 size.

Answer by: Customer Support on May 26, 2025, 3:23 PM
