Stainless Mjic X Male Din2353L

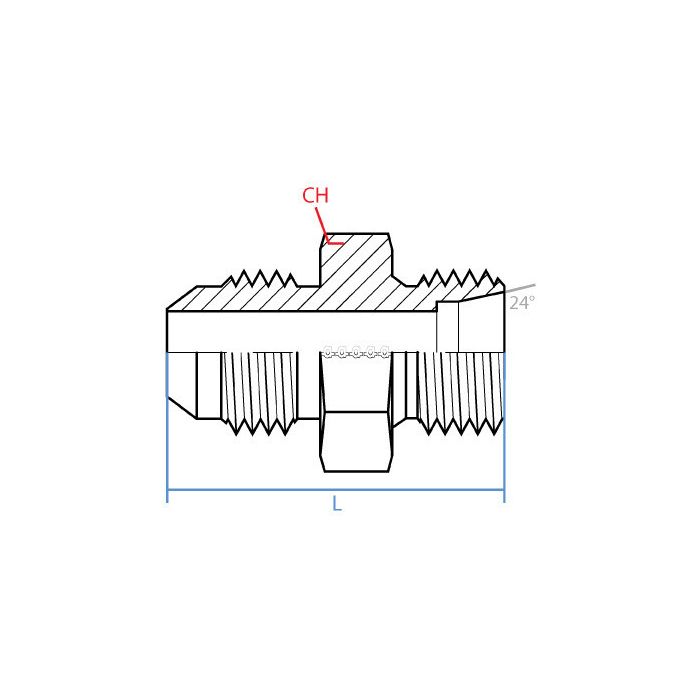

CH Width
38mm
L Length
55.4mm
Adaptall Material
Stainless
Adaptall Shape
Straight
Side 1 Callout
1-1/16 - 12 UN
Side 1 Gender
M
Side 1 Size
3/4"
Side 1 Type
Jic
Side 2 Callout
M30 X 2.0
Side 2 Gender
M
Side 2 Size
L22
Side 2 Type
Din Tube
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
SS9605-12-L22-30
Product Weight
0.50 lbs

Product Questions & Answers

trying to hook a 3/4 jic hose end over to an L22 din tube fitting, is this the right adapter?
Question by: Hugh M on Sep 8, 2025, 3:27 PM
For that kind of hookup, this is a straight stainless adapter with a 3/4 inch JIC male on one side (1-1/16 - 12 UN) and a DIN 2353 L series male tube end on the other in L22 size with an M30 x 2.0 thread.
Answer by: Customer Support on Sep 10, 2025, 12:27 PM
