Ss316 Mjic X Male Din 2353L SS9605-08-L15-22

Specifications

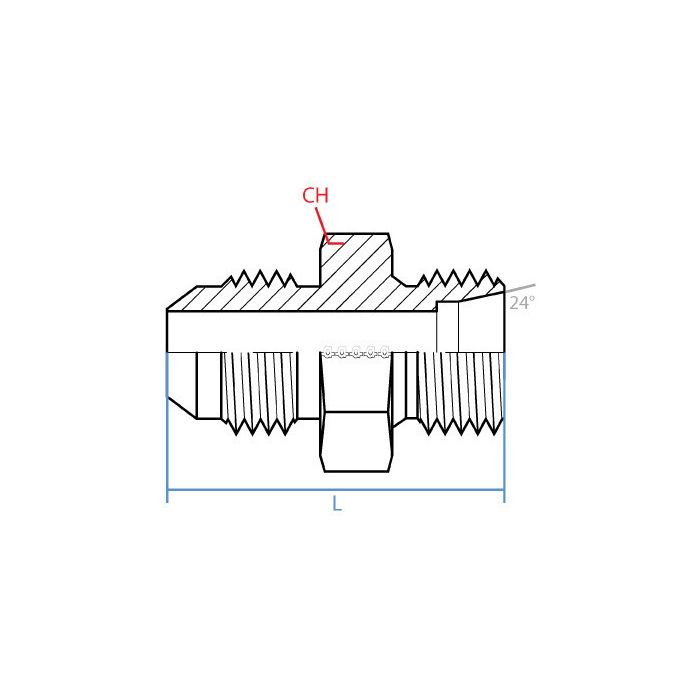

CH Width 27mm	L Length 42.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-08-L15-22	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's 42.8mm long and I got limited space between components, that dimension is the full end-to-end length, right?

Question by: Neal B on Sep 11, 2025, 12:11 PM

Yes, 42.8mm is the overall length of the fitting from end to end. That's the number to work with when you're checking clearances. The wrench flat runs 27mm across, so factor that in too if you're tight on space around the hex when torquing it down.

Answer by: Customer Support on Sep 13, 2025, 6:44 AM

got a hose end thats 1/2 jic male with 3/4-16 threads. will this adapt it over to a m22x1.5 din tube l15?

Question by: Randy K on Jun 3, 2025, 4:47 PM

For tying those two standards together, it adapts a 1/2 inch JIC male end with 3/4 - 16 UNF threads on one side to a M22 x 1.5 male DIN 2353 Light connection for DIN tube size L15 on the other.

Answer by: Customer Support on Jun 5, 2025, 1:41 PM

Will this here fitting work to connect a JIC to a DIN setup?

Question by: Lyle H on Dec 24, 2025, 3:17 PM

This Adaptall fitting adapts a 1/2" JIC male end with a 3/4 - 16 UNF thread to a M22 X 1.5 Male DIN Tube L15, so yes, it's made for connecting those types of setups.

Answer by: Customer Support on Dec 25, 2025, 8:45 PM
