Ss316 Mjic X Male Din 2353L

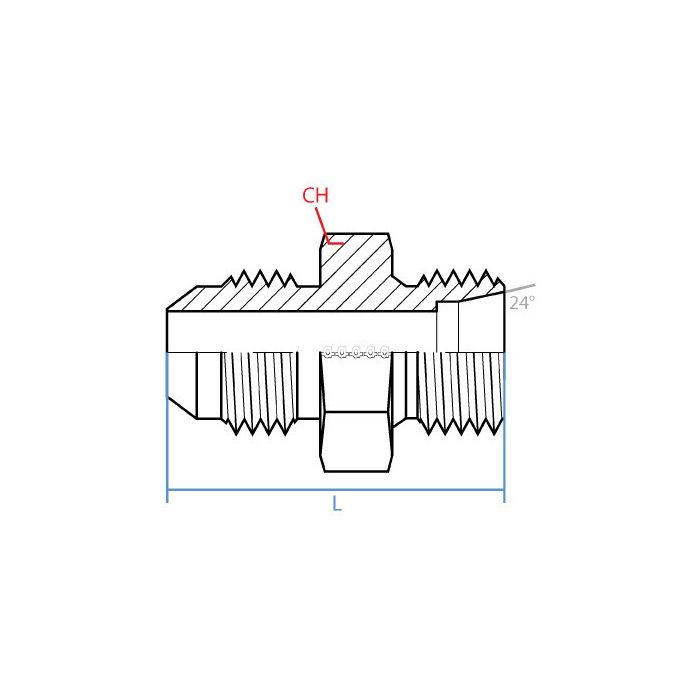

CH Width 24mm	L Length 38mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-06-L12-18	Product Weight 0.14 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 3/8 JIC line on a hydraulic system and need to tie into a DIN 2353 light series port sized at M18 x 1.5 -- this adapter do that in one piece or am I gonna need something extra?

Question by: Dale T on Sep 25, 2025, 3:19 PM

One piece is all you need here. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, the other is an M18 x 1.5 Male DIN 2353L fitting, which is the light series L12. Straight configuration, no intermediate hardware required. At 38mm overall length it stays pretty compact in tight hydraulic connections situations.

Answer by: Customer Support on Sep 26, 2025, 9:06 PM

Will this here fitting hold up if I'm usin' it outside where it gets rained on a lot?

Question by: Dwight A on Jul 23, 2025, 9:15 PM

Because it's made from 316 stainless steel, this adapter offers good corrosion resistance, so moisture shouldn't be a problem.

Answer by: Customer Support on Jul 25, 2025, 1:04 PM
