Stainless Mjic X Male Din2353L

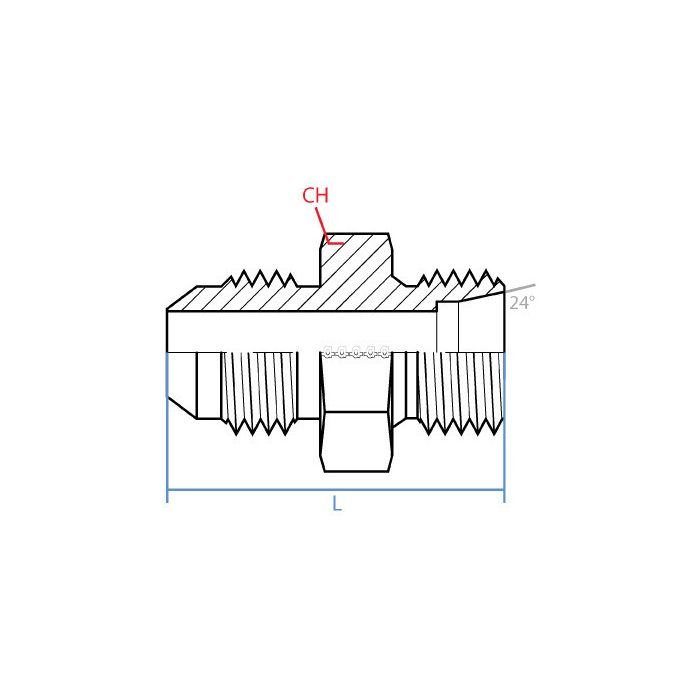

CH Width 19mm	L Length 32.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-04-L08-14	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Does this adapter go straight across, or is there some kind of angle to it?

Question by: Joyce H on Sep 21, 2025, 5:18 PM

Straight through, no angle. Both ends are in-line, so it threads right onto your JIC fitting on one side and the DIN 2353 L08 male tube connection on the other without any change in direction. The overall length runs 32.7mm, which is pretty compact for tight hydraulic connections runs.

Answer by: Customer Support on Sep 23, 2025, 2:59 PM
