Stainless Mjic X Male Din2353L

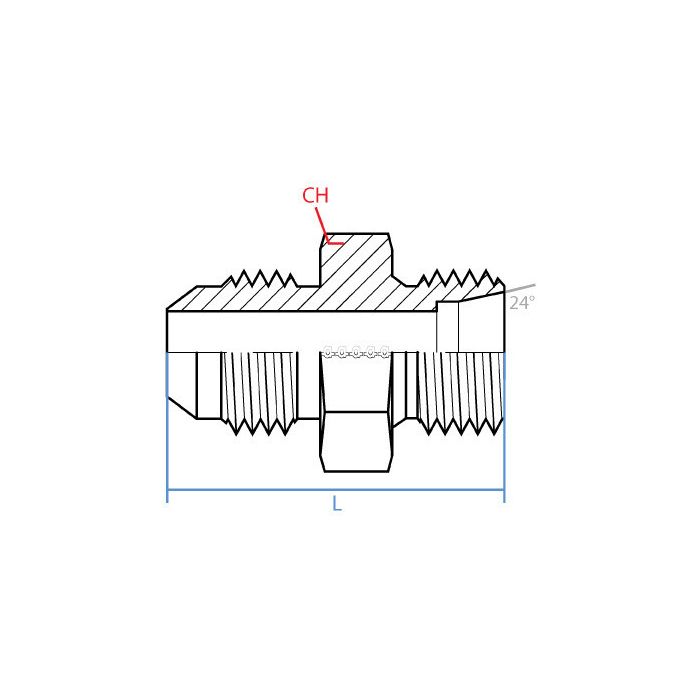

CH Width 19mm	L Length 32.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-04-L06-12	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this'll hold up okay in a hydraulic setup with some vibration?

Question by: Scott R on Sep 15, 2025, 8:36 PM

Constructed from stainless steel, this adapter is designed for robust industrial applications, providing enhanced durability and optimal performance even under challenging conditions like vibration.

Answer by: Customer Support on Sep 17, 2025, 8:34 PM

got a metric tube fitting on one side of my setup and a JIC line on the other, will this adapter bridge those two without needing extra pieces in between?

Question by: Lance B on Nov 6, 2025, 7:33 PM

That's what this one's built for. One end is a 7/16-20 UNF male JIC and the other is an M12 x 1.5 male DIN tube connection, so it crosses those two standards in a single straight adapter. No extra couplings needed in between. Just make sure your tube side is sized for L06 and you're good to go.

Answer by: Customer Support on Nov 8, 2025, 6:16 AM
