Ss316 Mjic X Fbspp Swivel

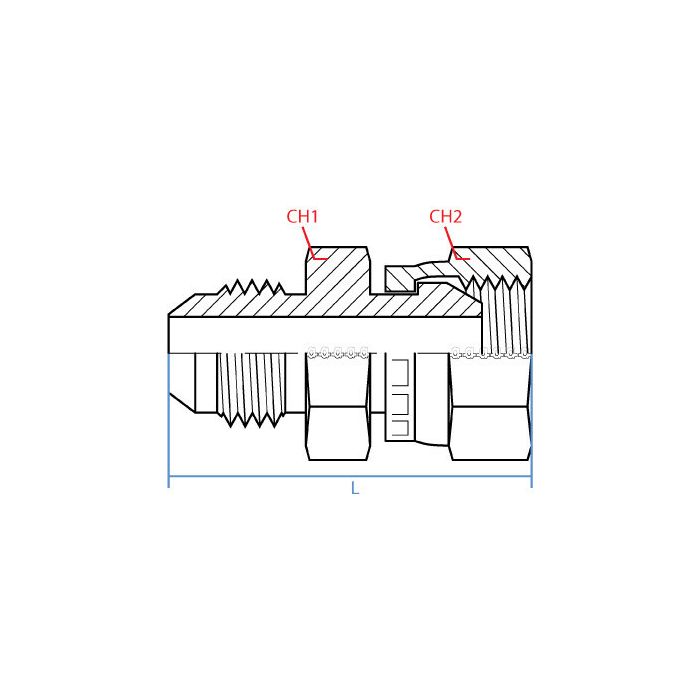

CH1 Width 38mm	CH2 Width 41mm	L Length 62.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-16-16	Product Weight 0.65 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's got a 1" JIC on one end and I got a 1" BSPP port on my equipment, that thread callout on the BSPP side, is it a straight thread or tapered?

Question by: Randy W on Jan 16, 2026, 9:51 AM

BSPP runs parallel, not tapered. That's what the "P" at the end stands for, and the G 1 - 11 callout on this fitting confirms it's a straight parallel thread. If your equipment port is also BSPP, you're working with the right connection type. The swivel feature on that female end also gives you a little rotational freedom during installation, which helps a lot when you're trying to avoid twisting a hose or line during makeup.

Answer by: Customer Support on Jan 18, 2026, 6:01 AM

trying to match up fittings here, is this one a 1 inch JIC male to a 1 inch BSPP female swivel?

Question by: Jimmy C on Jun 22, 2025, 11:31 AM

On the JIC side you are getting a 1 inch male with a 1-5/16 - 12 UN thread callout, and the other end is a 1 inch female BSPP swivel with a G 1 - 11 callout.

Answer by: Customer Support on Jun 24, 2025, 6:06 AM
