Ss316 Mjic X Fbspp Swivel

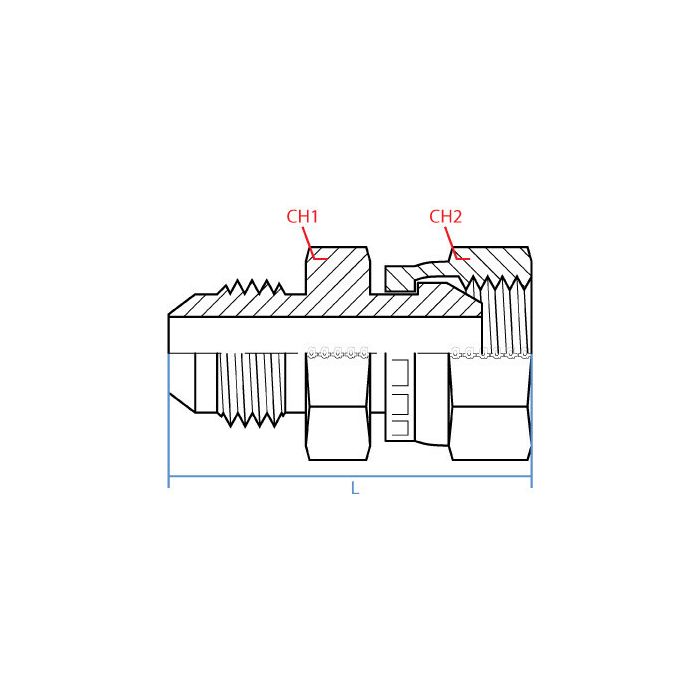

CH1 Width 30mm	CH2 Width 32mm	L Length 57mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-12-12	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose with a 3/4 JIC male on it. will this swivel adapter mate up to that and still give me a 3/4 BSPP female on the other end?

Question by: Steve S on Jan 22, 2026, 7:34 PM

Side 1 is a 3/4 inch male JIC with 1-1/16 - 12 UN threads, and side 2 is a 3/4 inch female BSPP with G 3/4 - 14 threads. So it is meant to connect a JIC interface on one side and a BSPP female on the other in the same 3/4 inch size.

Answer by: Customer Support on Jan 24, 2026, 10:12 AM
