Ss316 Mjic X Fbspp Swivel SS9240-08-08

Specifications

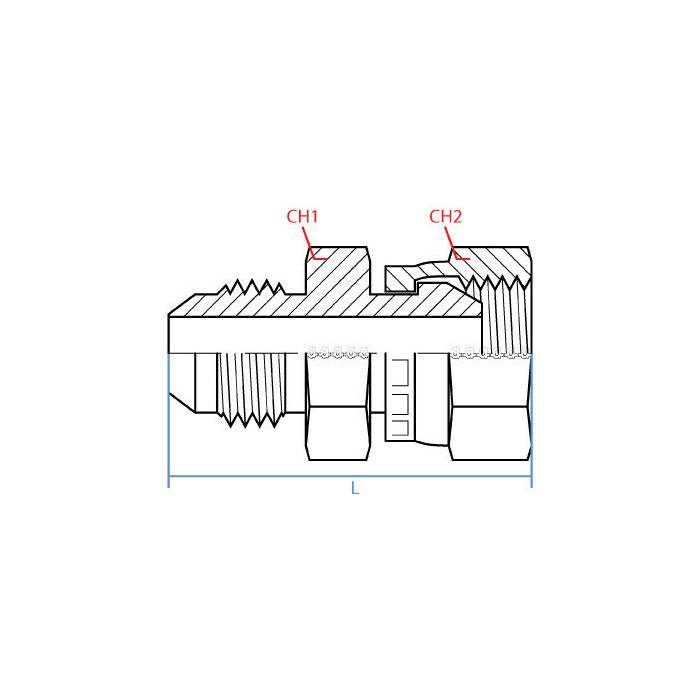

CH1 Width 27mm	CH2 Width 27mm	L Length 46.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-08-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with a G 1/2-14 port on it and need to tie into a JIC line, this straight swivel gonna work for that?

Question by: Johnny R on Nov 13, 2025, 4:43 PM

That's the kind of situation this fitting handles. One end is a 1/2" male JIC on a 3/4-16 UNF thread, and the other is a 1/2" female BSPP with a G 1/2-14 thread. The swivel on the BSPP end lets it rotate during installation so you're not putting twist into your hydraulic line trying to make it seat right. Straight configuration, no angle, so it works best when your port and your line are lined up direct.

Answer by: Customer Support on Nov 15, 2025, 1:23 PM

Can this swivel fitting handle hydraulic fluid okay, or is it more for something else?

Question by: Janice G on May 10, 2025, 5:42 PM

This fitting is well-suited for hydraulic systems, especially where you need good corrosion resistance. The stainless steel construction makes it compatible with hydraulic fluid, plus marine, food-grade, and chemical-handling environments.

Answer by: Customer Support on May 12, 2025, 6:01 AM

got a hose with a 1/2 JIC male on it, will this screw right into a G 1/2 BSPP female port without any goofy adapters

Question by: Gary C on Oct 29, 2025, 12:21 PM

For a straight thread match-up, it fits a 1/2 inch male JIC on one side with 3/4 to 16 UNF threads, and a 1/2 inch female BSPP on the other with G 1/2 to 14 threads. It is made to bridge those two connection types directly.

Answer by: Customer Support on Oct 31, 2025, 11:56 AM
