Ss316 Mjic X Fbspp Swivel SS9240-06-06

Specifications

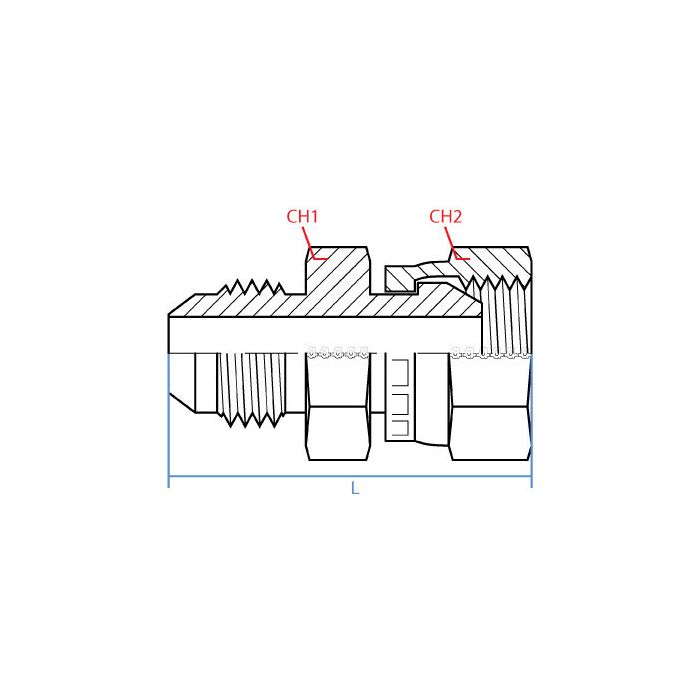

CH1 Width 19mm	CH2 Width 22mm	L Length 39.3mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-06-06	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running BSPP on one end and JIC on the other, this swivel gonna bridge that gap without needing extra fittings in between?

Question by: Keith G on Aug 29, 2025, 3:45 PM

That's what it's built for. One side is a 9/16-18 UNF male JIC, the other is a G 3/8-19 female BSPP, so it connects those two thread standards directly. Both sides are 3/8" size, and the straight profile keeps things clean without adding unnecessary bulk. At 39.3mm long it's compact enough to fit into tight hydraulic connections runs without a lot of fuss.

Answer by: Customer Support on Aug 31, 2025, 6:41 AM

got a hose end that’s 9/16-18 UNF JIC male, will this swivel mate up with it?

Question by: Dean W on Jun 15, 2025, 9:01 PM

On the JIC side, you are looking at a 9/16 - 18 UNF male JIC connection (3/8 inch size). The other end of the adapter is a G 3/8 - 19 female BSPP swivel, so it is meant to join a JIC connection to a BSPP connection.

Answer by: Customer Support on Jun 17, 2025, 6:57 AM

Will this swivel work with regular hydraulic fluid?

Question by: Keith A on Apr 17, 2025, 11:01 AM

Crafted from stainless steel, this swivel is well-suited for hydraulic applications where corrosion resistance is important.

Answer by: Customer Support on Apr 19, 2025, 10:28 AM
