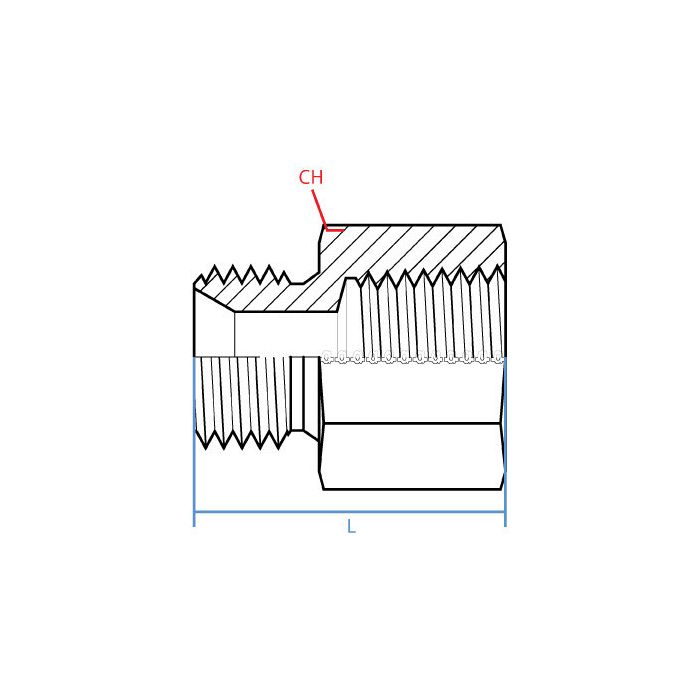

Ss316 Male Metric X Female Npt

Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9235-14-L08-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting is stainless steel 316, but what thread type is on the NPT end exactly? need to know if it's NPTF or just standard NPT before I order.

Question by: Gene T on Aug 13, 2025, 7:08 PM

The female NPT side uses a 1/4"-18 NPTF thread. NPTF is a dry-seal thread form, so it's designed to hold pressure without relying solely on sealant. That said, most folks still apply thread tape or sealant as a precaution depending on the application.

Answer by: Customer Support on Aug 15, 2025, 6:22 AM

Just want to make sure this fits... I got a metric DIN tube that's M14 x 1.5, and need to hook it up to a 1/4" female NPT. Will this do the trick?

Question by: Harold L on Jul 8, 2025, 9:02 PM

For that setup, yes, this Adaptall fitting should work perfectly. It's designed to connect an M14 x 1.5 male DIN tube to a 1/4" female NPT thread.

Answer by: Customer Support on Jul 10, 2025, 6:18 AM
