Stainless Mjic X Mm Standpipe SS9200-12-18

Specifications

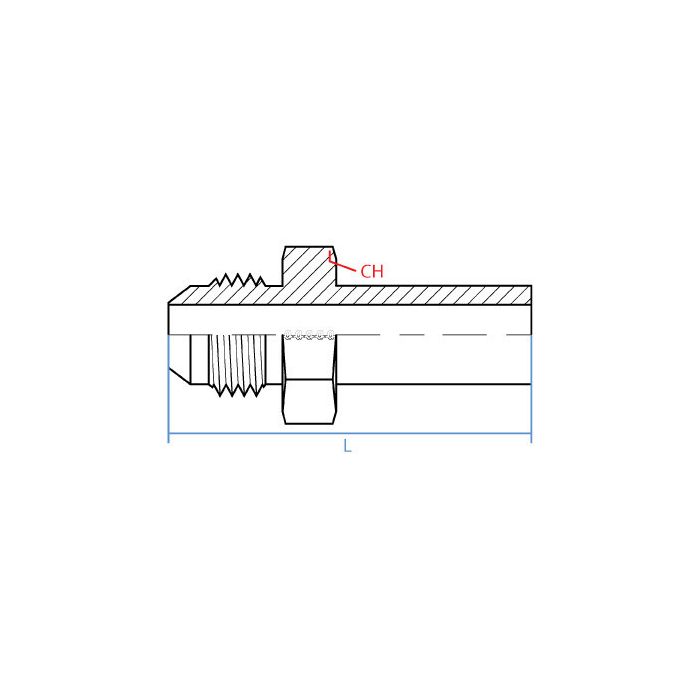

CH Width 32mm	L Length 64.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 18mm	Side 2 Gender F	Side 2 Size 18mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-12-18	Product Weight 0.33 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this would hold up alright in a hydraulic setup that sees a fair bit of vibration?

Question by: Chad G on Nov 17, 2025, 8:17 AM

Built from stainless steel, this adapter is a solid choice where corrosion resistance is a must. Its compact form factor should also help it hold steady in tight spots.

Answer by: Customer Support on Nov 18, 2025, 9:48 PM

Got a piece of equipment with an 18mm DIN standpipe port and need to tie into a JIC line on the other side, this fitting handle that crossover?

Question by: Dale G on Apr 3, 2026, 11:36 AM

That's what this adapter is built for. One end is a 3/4" Male JIC with a 1-1/16-12 UN thread, and the other end is an 18mm Female DIN Standpipe. So if you've got a metric DIN port on your equipment and a JIC hydraulic line coming in, this bridges the two in one fitting without any extra adapters stacked in between.

Answer by: Customer Support on Apr 4, 2026, 8:35 PM

got a hose end that’s 3/4 JIC male, and the other side on my setup is an 18mm DIN standpipe female. is this the right adapter to tie those together

Question by: Wayne B on Apr 2, 2026, 2:22 PM

For tying those two standards together, it matches that combo. One end is a 3/4 inch Male JIC with 1-1/16-12 UN threads, and the other end is an 18mm Female DIN standpipe.

Answer by: Customer Support on Apr 4, 2026, 9:52 AM
