Stainless Mjic X Mm Standpipe

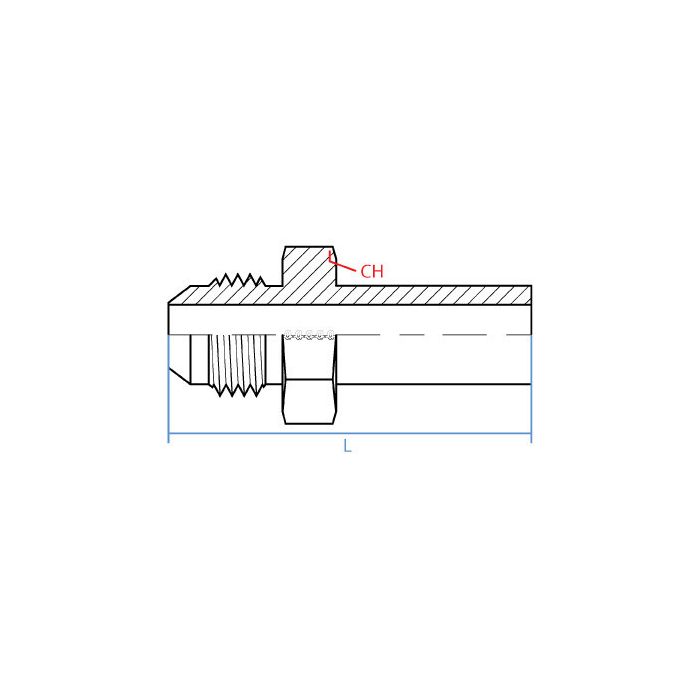

CH Width 22mm	L Length 47.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number C1HG91	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-08-16	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a fitting i pulled off, is this one 1/2 jic male on one side and a 16mm din standpipe female on the other?

Question by: Ricky E on Jul 8, 2025, 6:45 AM

On the JIC end you get a 1/2 inch male with 3/4 - 16 UNF threads, and the opposite end is a 16 mm DIN standpipe female connection.

Answer by: Customer Support on Jul 10, 2025, 6:04 AM

Got a setup running a 16mm DIN standpipe connection and need to tie it into a JIC line, this fitting make that jump?

Question by: Lee H on Jun 9, 2025, 1:33 PM

That's what this one does. One end is a 1/2" male JIC with a 3/4-16 UNF thread, and the other side is a 16mm DIN standpipe female. Straight configuration, so there's no angle to account for during installation. It's made from stainless steel and comes from Adaptall, so the build quality is solid. Overall length is 47.5mm with a 22mm wrench flat if you need to torque it down properly.

Answer by: Customer Support on Jun 11, 2025, 8:40 AM
