Stainless Mjic X Mm Standpipe

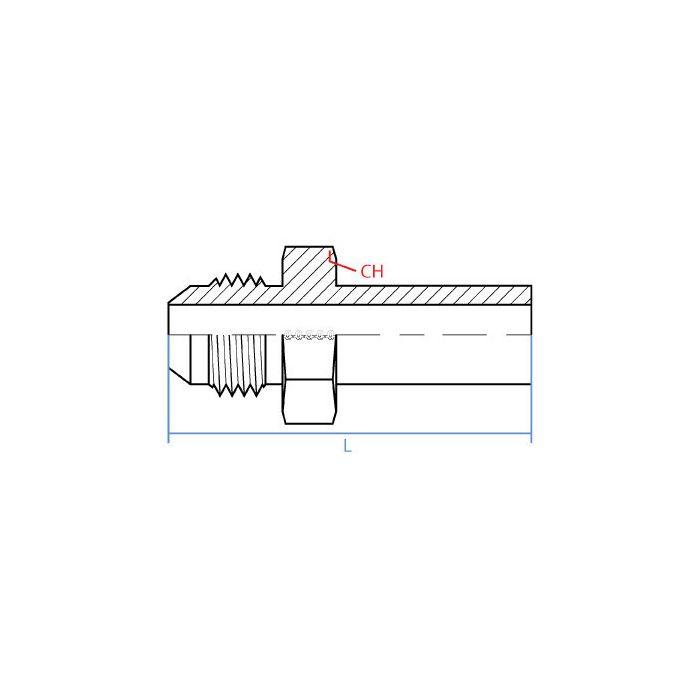

CH Width 22mm	L Length 47.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 15mm	Side 2 Gender F	Side 2 Size 15mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number C1FP70	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-08-15	Product Weight 0.14 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to replace a standpipe fitting, is this one 3/4-16 UNF male JIC on one end and 15mm female DIN on the other?

Question by: Vince G on Sep 15, 2025, 8:34 AM

On the JIC side you are getting a 3/4-16 UNF male connection, listed as a 1/2 inch JIC size. The other end is a 15mm female DIN standpipe connection, so it matches that JIC to DIN standpipe combination.

Answer by: Customer Support on Sep 16, 2025, 9:14 PM
