Stainless Mjic X Mm Standpipe SS9200-08-12

Specifications

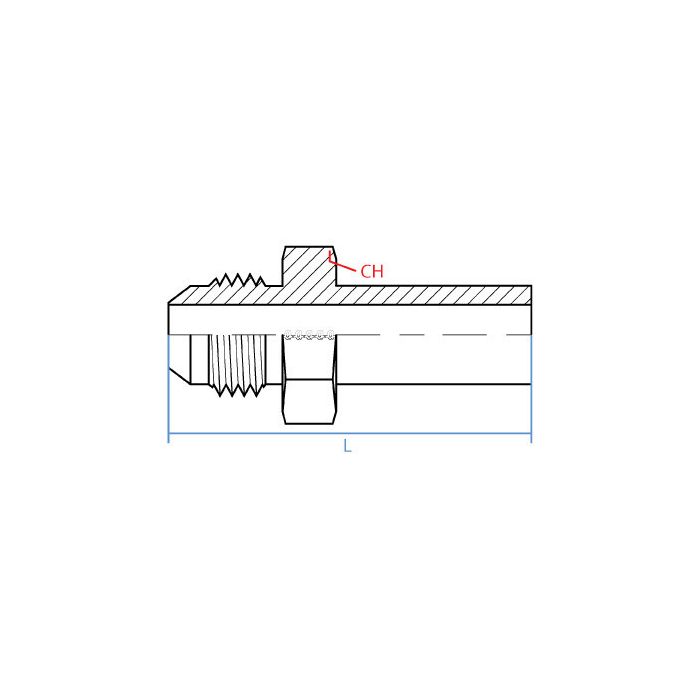

CH Width 22mm	L Length 46.9mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 12mm	Side 2 Gender F	Side 2 Size 12mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number C1FP69	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-08-12	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting out, is this one the straight stainless standpipe that goes 3/4-16 UNF male JIC on one end and 12mm female DIN standpipe on the other?

Question by: Pete H on Apr 1, 2026, 12:44 PM

For fit checks, the key details are the ends and the form. This standpipe is straight, made of stainless, with a 3/4 - 16 UNF male JIC connection on one side and a 12mm female DIN standpipe connection on the other.

Answer by: Customer Support on Apr 3, 2026, 10:36 AM

Just wanna make sure, the JIC side is male, right?

Question by: Ray R on Nov 8, 2025, 6:23 PM

That's correct, the side with the 3/4 - 16 UNF connection is a male JIC.

Answer by: Customer Support on Nov 9, 2025, 8:18 PM

trying to figure out if this'll work as a straight adapter between a JIC fitting and a DIN standpipe port, is that basically what this thing does?

Question by: Tony E on Jan 9, 2026, 3:16 PM

That's what it's built for. One end is a 3/4-16 UNF male JIC, and the other is a 12mm female DIN standpipe connection. So if you've got a hydraulic line or component with a DIN standpipe port and you need to tie into a JIC-threaded side, this bridges that gap in a straight configuration. No angled routing needed.

Answer by: Customer Support on Jan 10, 2026, 5:22 PM
