Stainless Mjic X Mm Standpipe

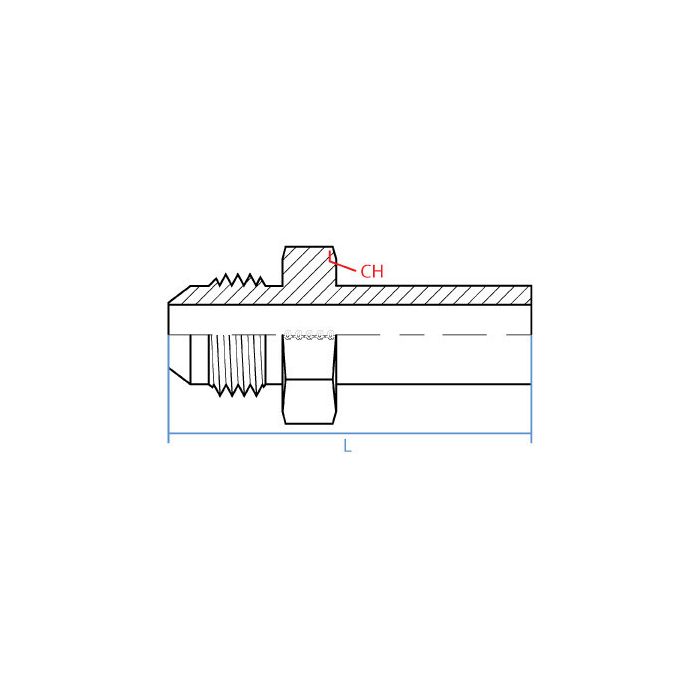

CH Width 16mm	L Length 42.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 12mm	Side 2 Gender F	Side 2 Size 12mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-06-12	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread spec on the male end of this fitting? trying to match it up to some JIC lines we already got running

Question by: Tony W on Oct 21, 2025, 5:59 PM

The male side runs a 9/16-18 UNF thread in a JIC configuration, which corresponds to a 3/8" JIC port. If your existing lines are set up for that size, this should match right up without any adapters in between.

Answer by: Customer Support on Oct 23, 2025, 11:36 AM
